Looking for the perfect fit?
Customers are matched to the correct frame size using a bike fit document or measurements from an existing bike. Aspects including stem length, handlebar drop and width, and saddle layback are set to your requirements. We have an online bike fit tool that can recommend adjustments.
Submit your Measurements
Choose your bike model below to access the specific fitting measurements or additional setup details we need to tailor your bike to you.
Measurements for the A1R0evo, A1R0evoS, CEXevo, TR2evoS & TR3evo
STEP-BY-STEP PROCESS
Before measuring, please ensure the bike is on level ground.
STEP 1
Describe Your Current Bike
Make, model and size.
STEP 2

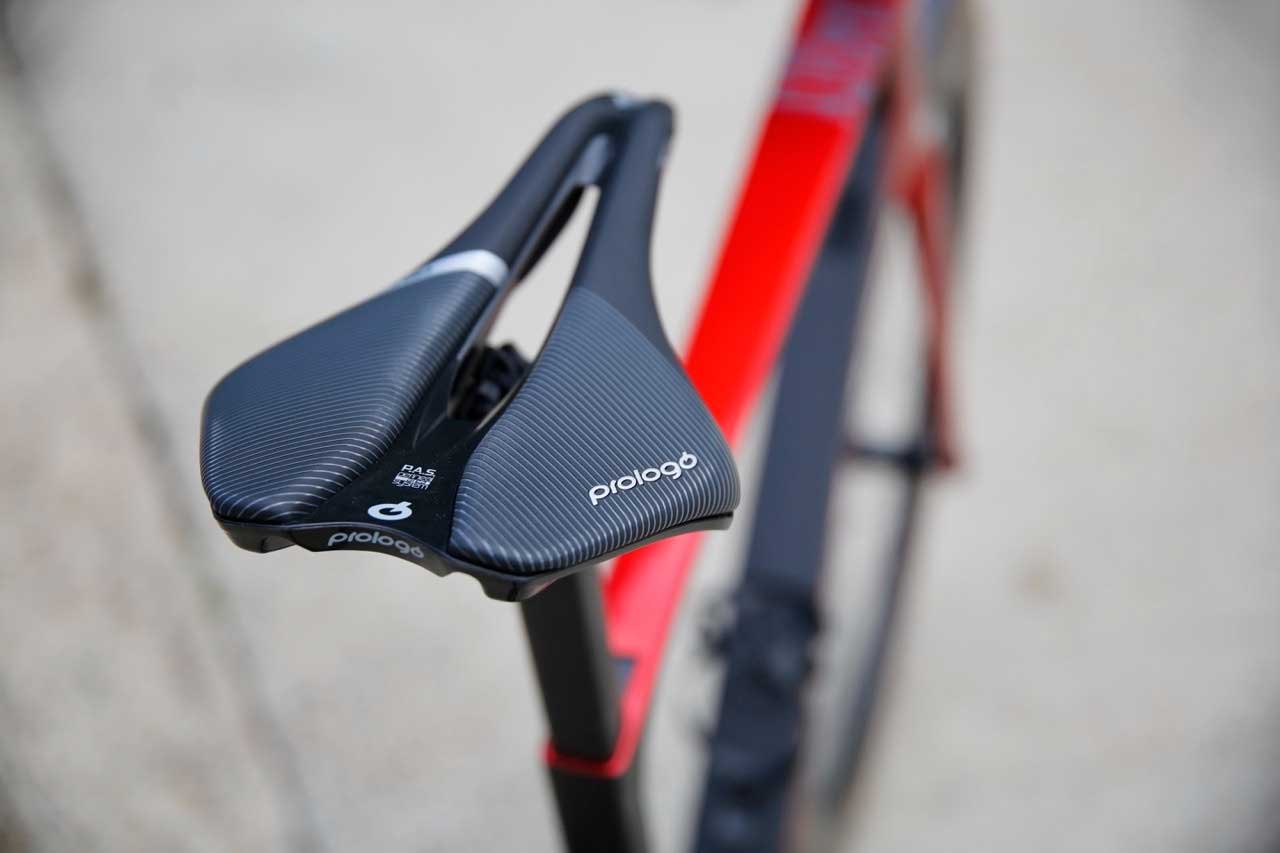

Saddle Length
Length of your Saddle.
STEP 3

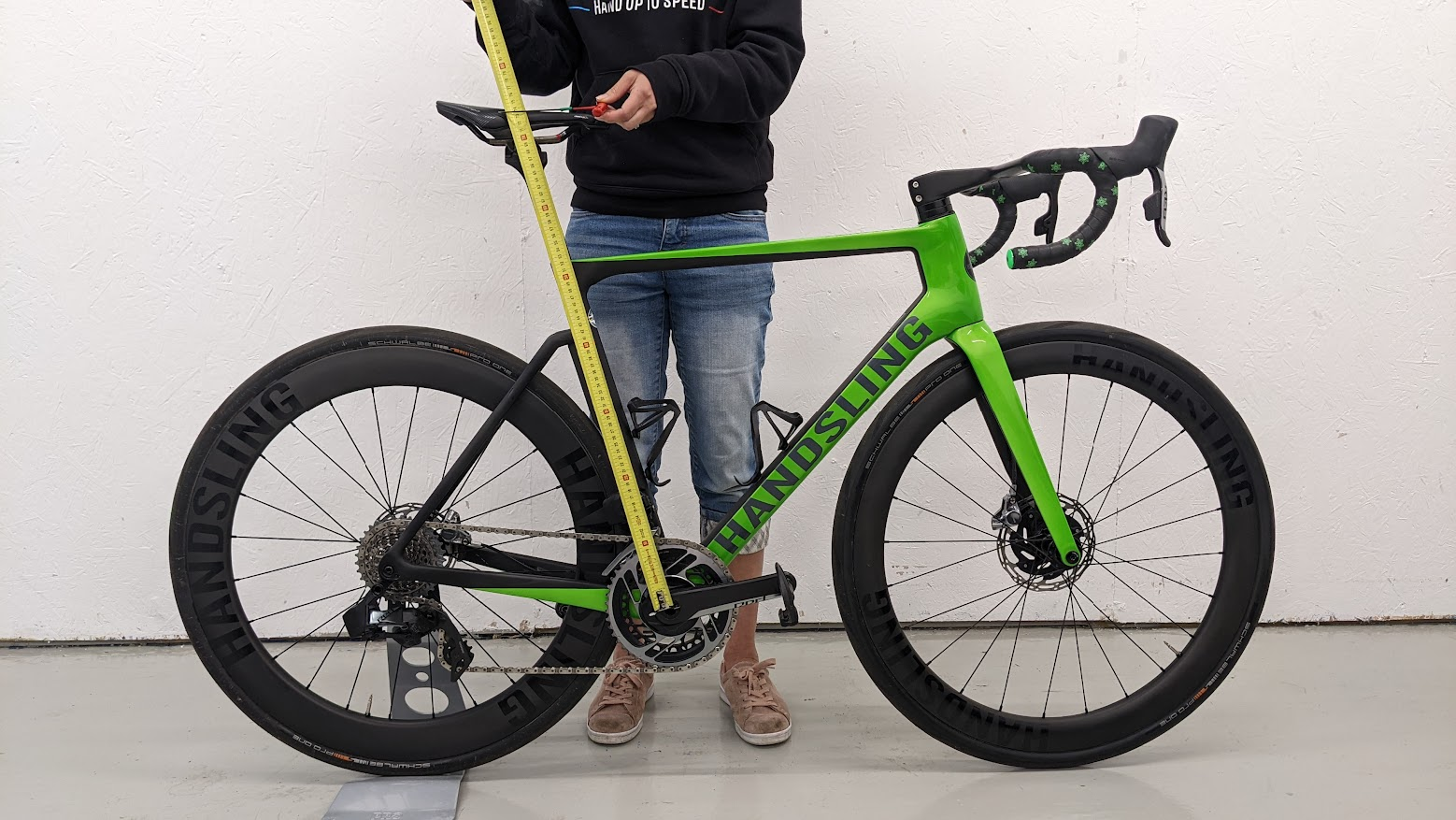

Saddle Height
Centre of the bottom bracket axle to the top of the saddle (via saddle clamp).
STEP 4

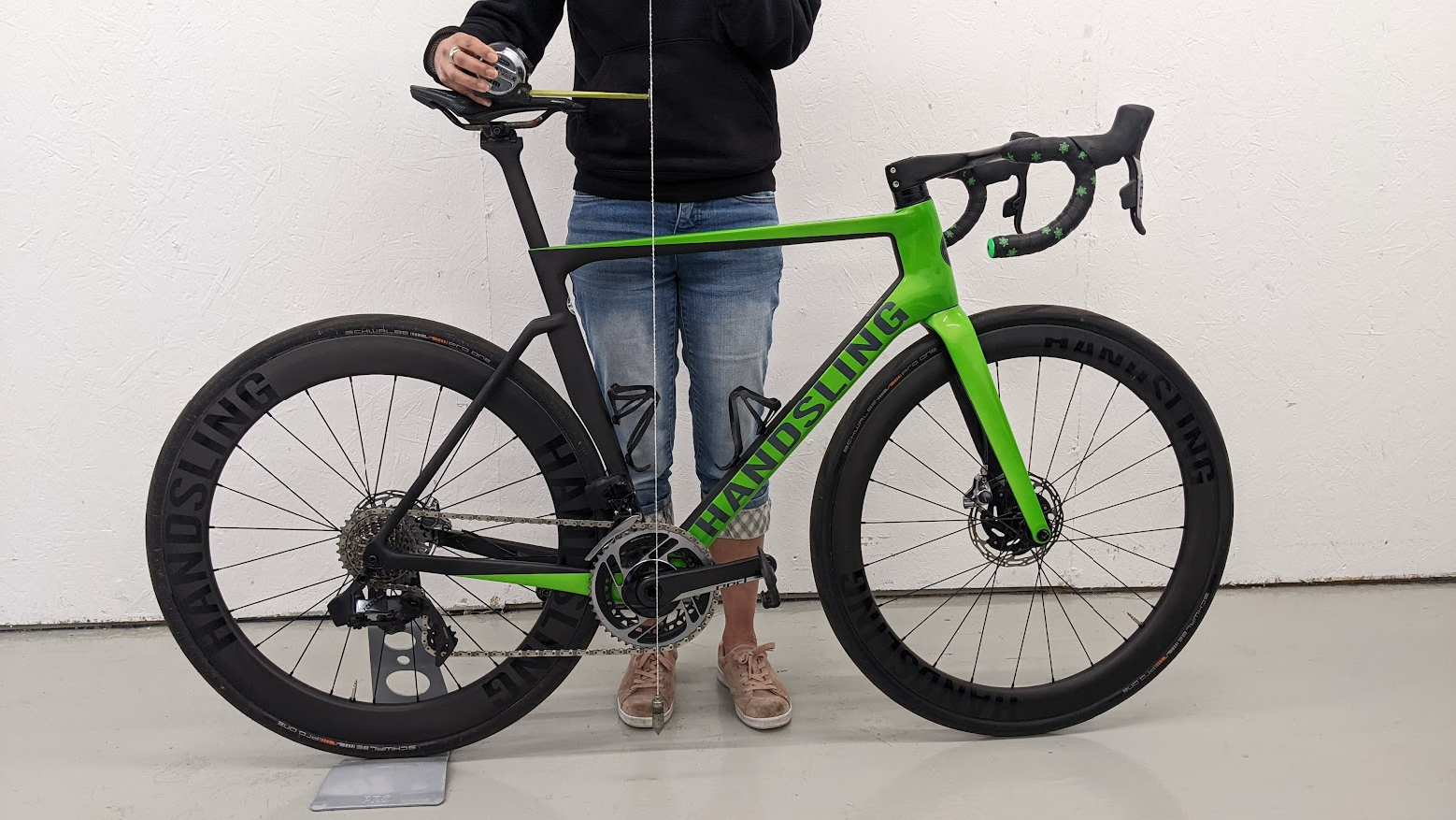

Saddle Layback
Tip of the saddle to directly above the centre of the bottom bracket.
STEP 5

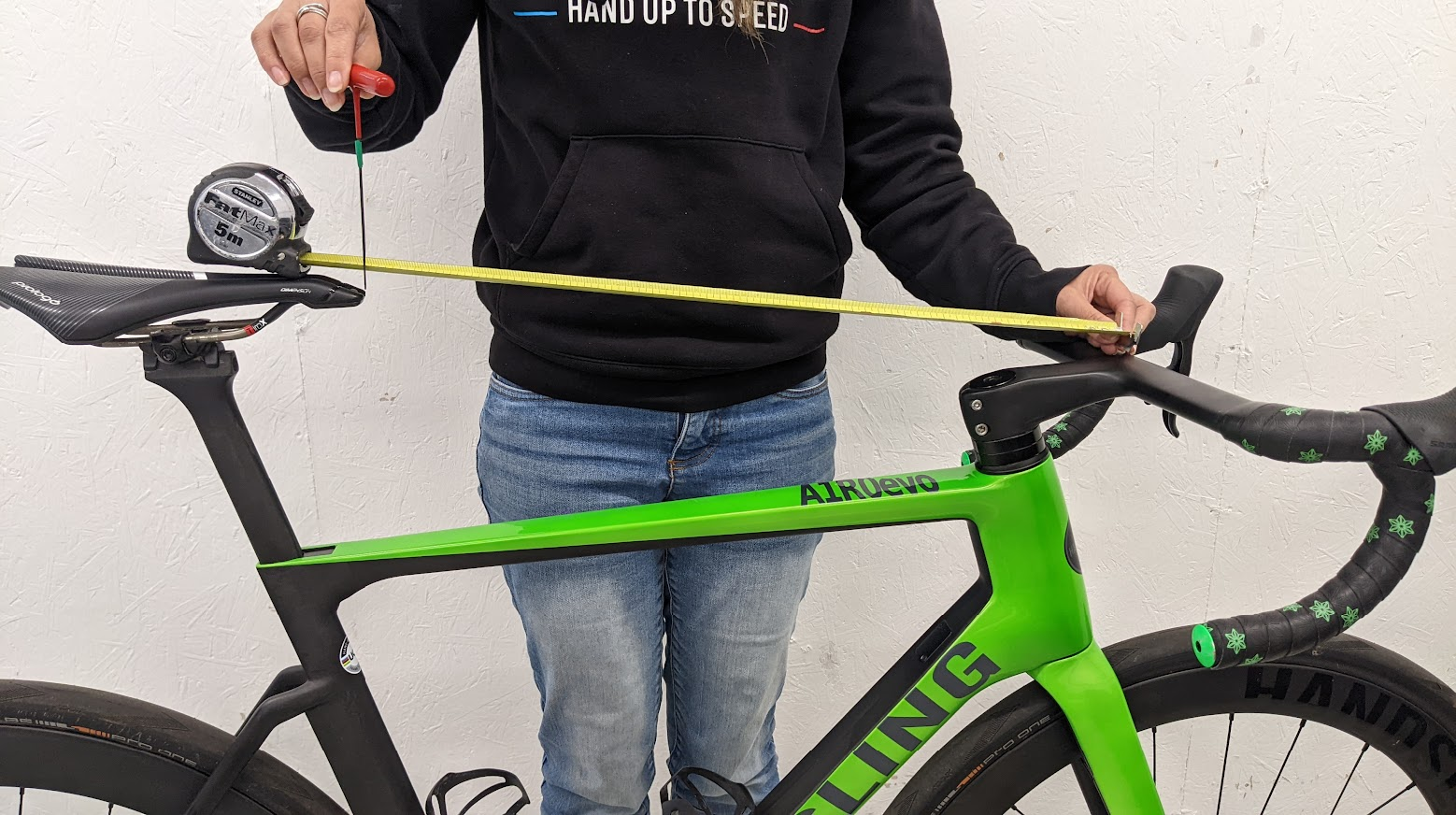

Handlebar Reach
Centre of the top of the handlebar to the tip of the saddle.
STEP 6

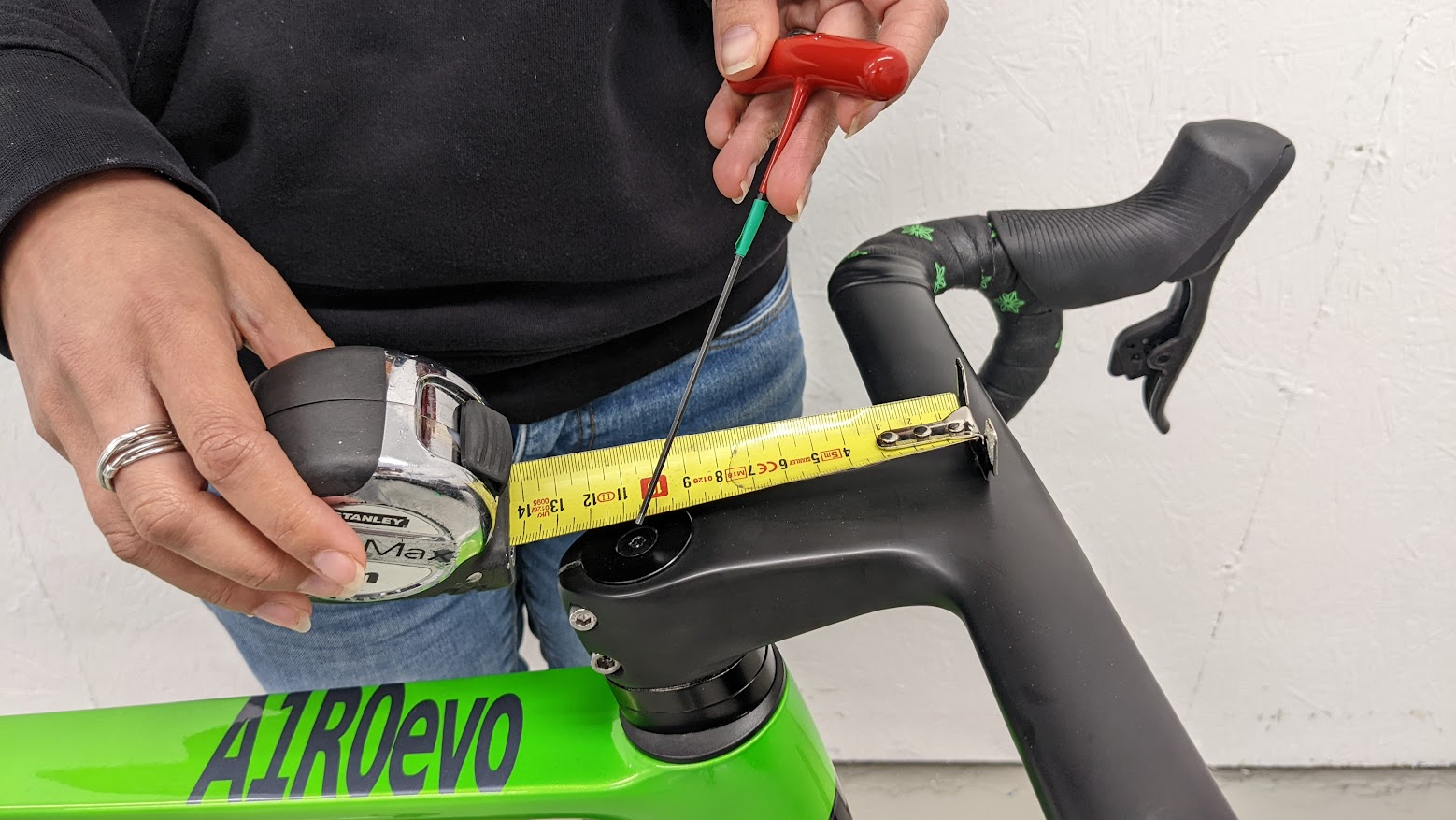

Stem Length
Centre of steerer to centre of the top of the handlebar.
STEP 7

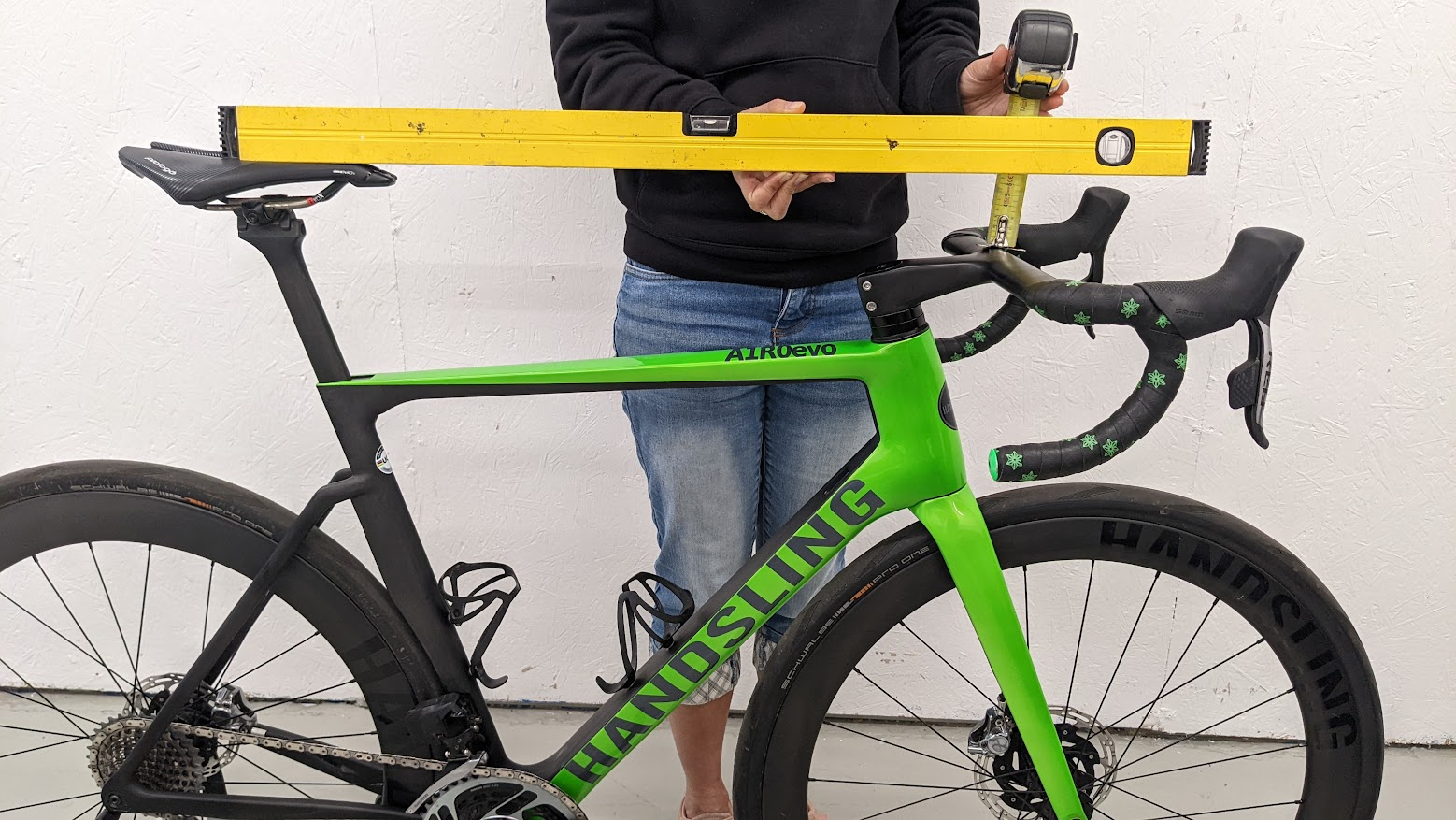

Saddle to Handlebar Drop
Level with the top of the saddle, down to the top of the handlebar.
STEP 8

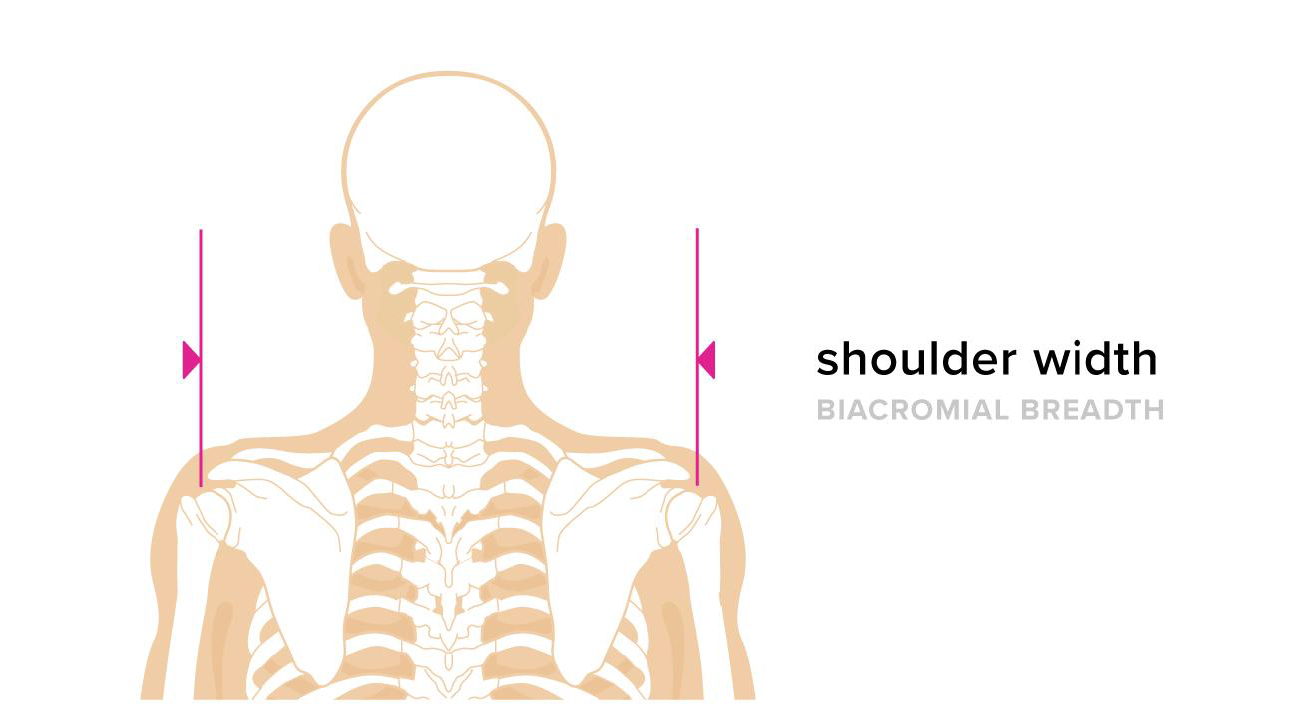

Shoulder Width
From where your shoulder meets the top of your arm, or, the boniest part of your shoulder.
Measurements for the TSTRevo and TR2evoP
STEP-BY-STEP PROCESS
Before measuring, please ensure the bike is on level ground.
STEP 1
Describe Your Current Bike
Make, model and size.
STEP 2
Saddle Length
Length of your Saddle.
STEP 3

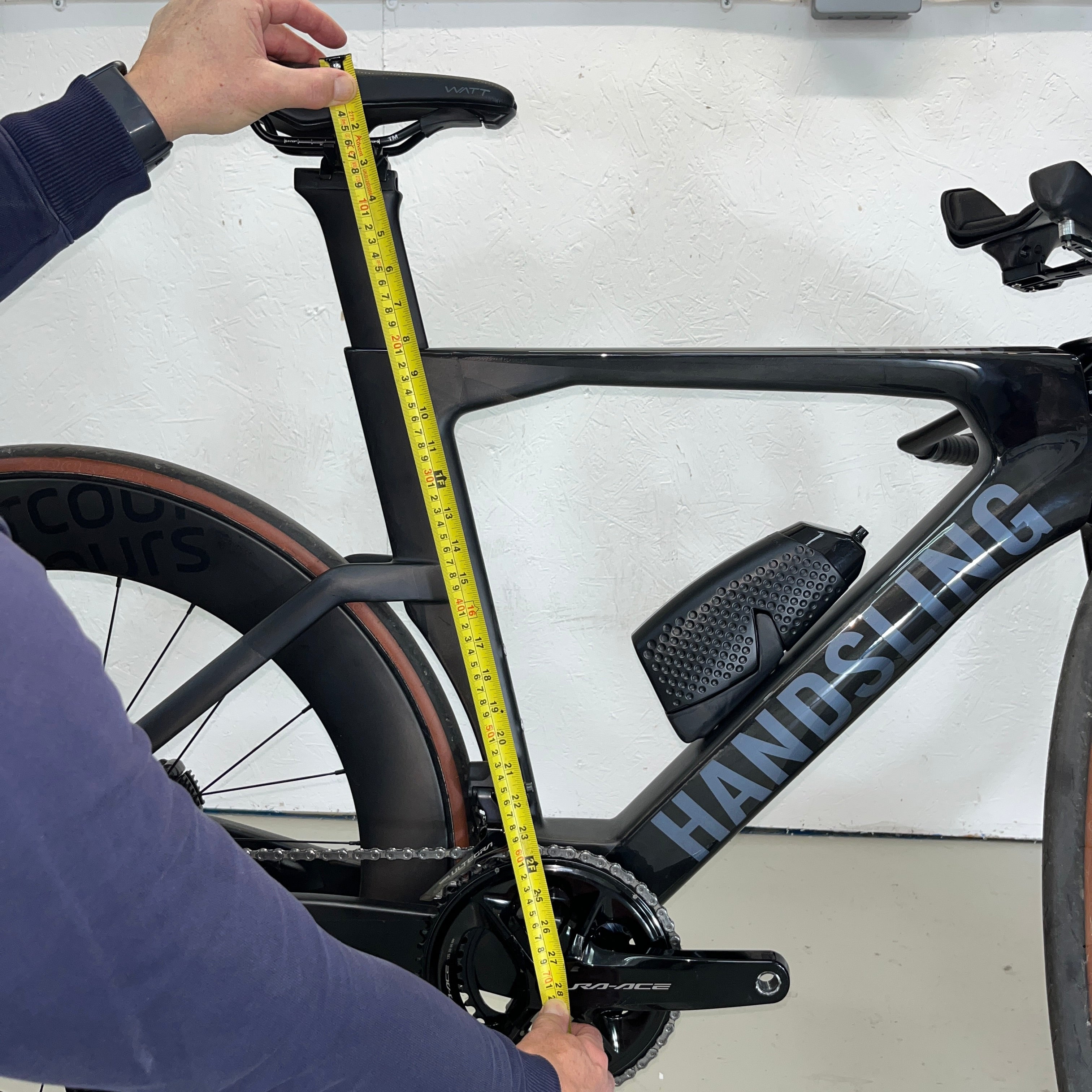

Saddle Height
Bottom bracket to top of saddle via Saddle clamp bolt
STEP 4

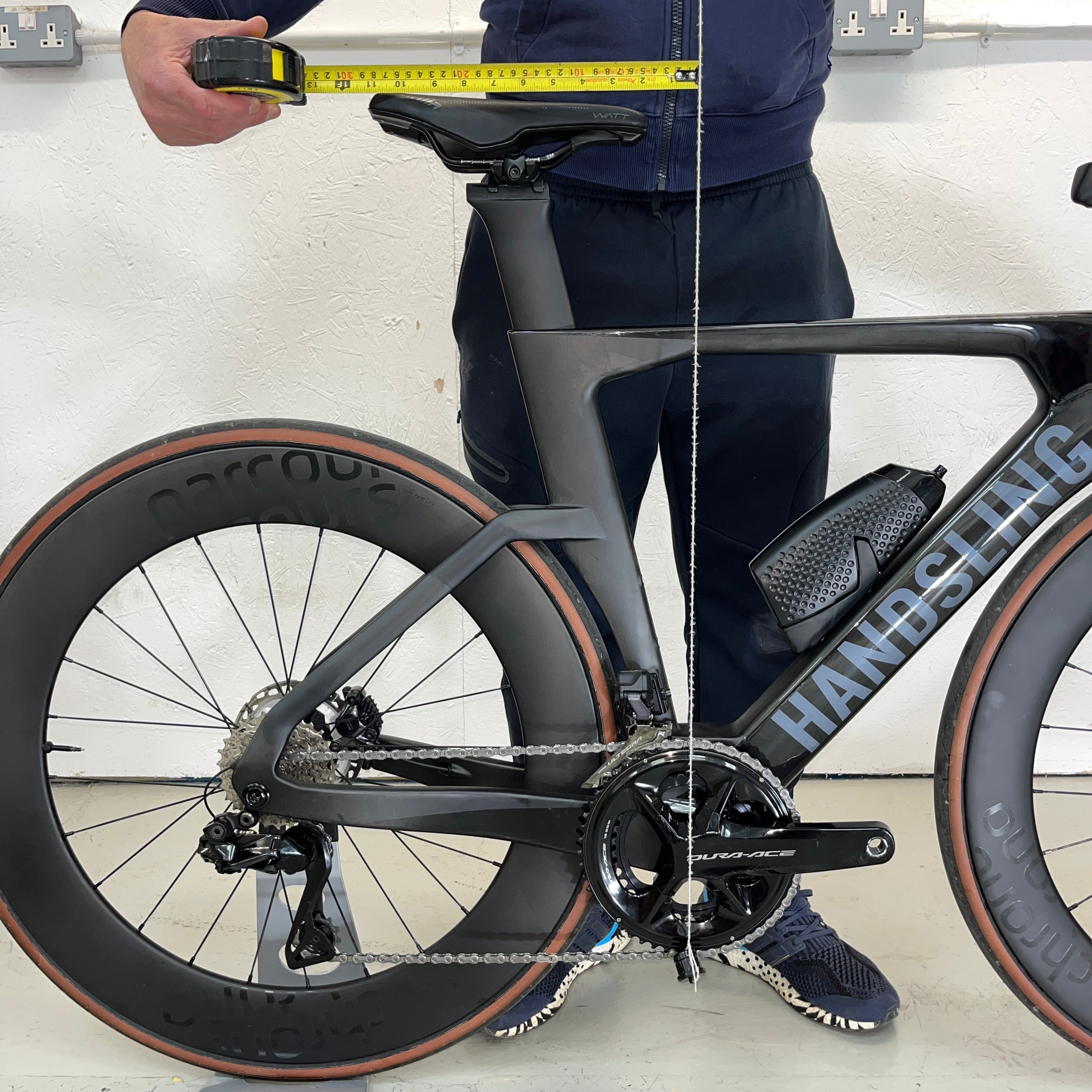

Saddle Layback
Tip of the saddle to directly above the centre of the bottom bracket.
STEP 5
Saddle to Cup Reach
Saddle tip to centre of arm cup
STEP 6

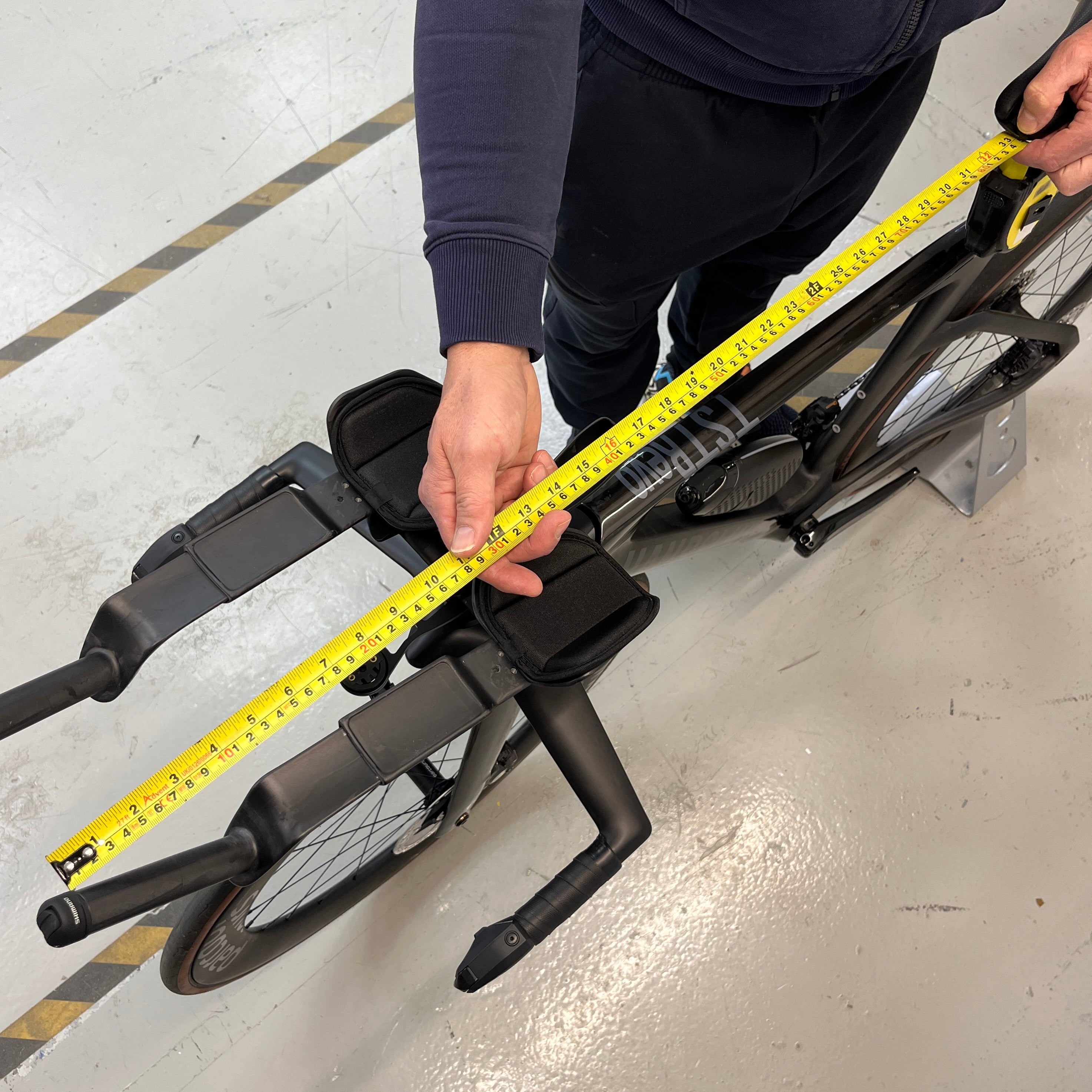

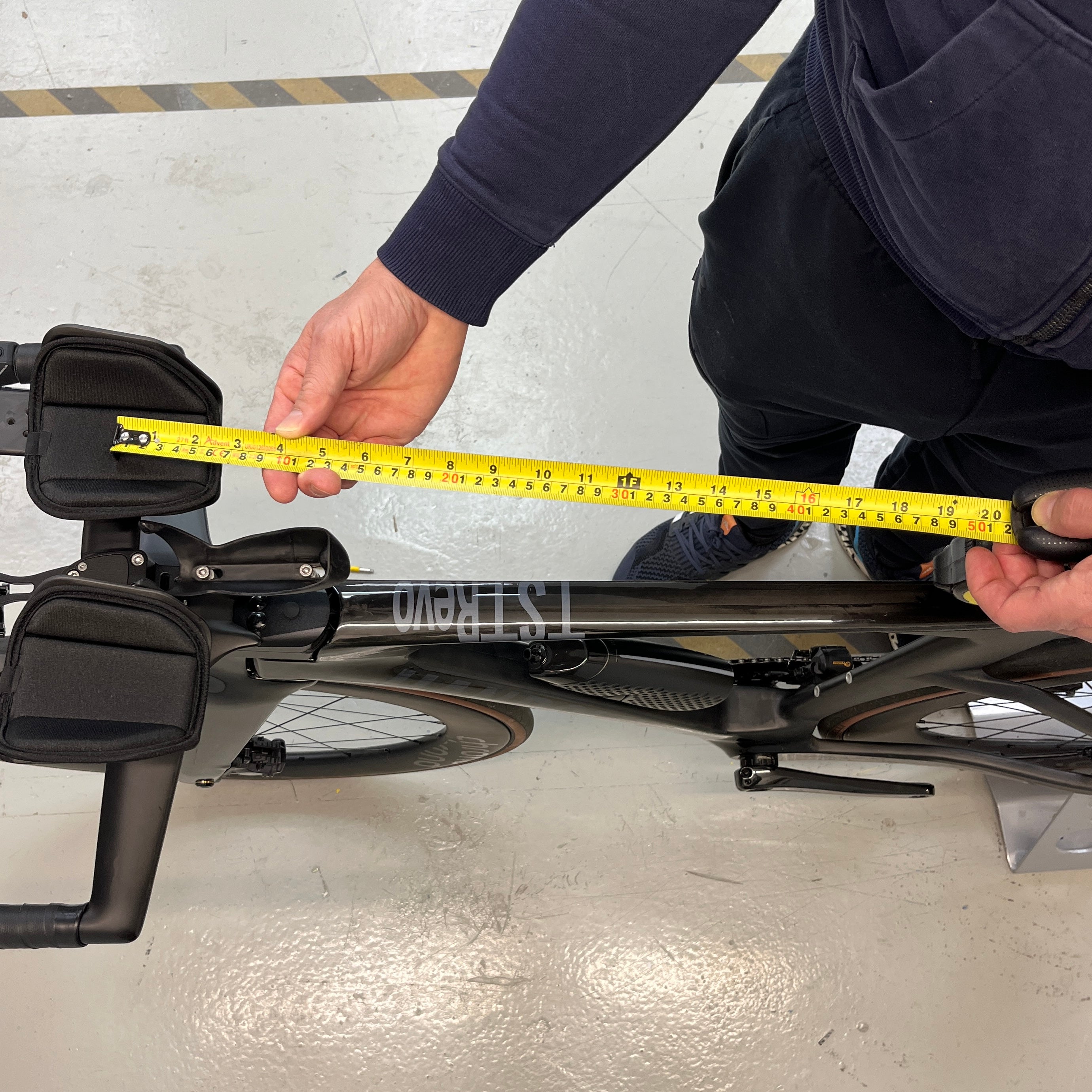

Saddle to Extension Reach
Saddle tip to end of extension.
STEP 7
Cup Drop
Saddle to centre of arm cup drop.
STEP 8

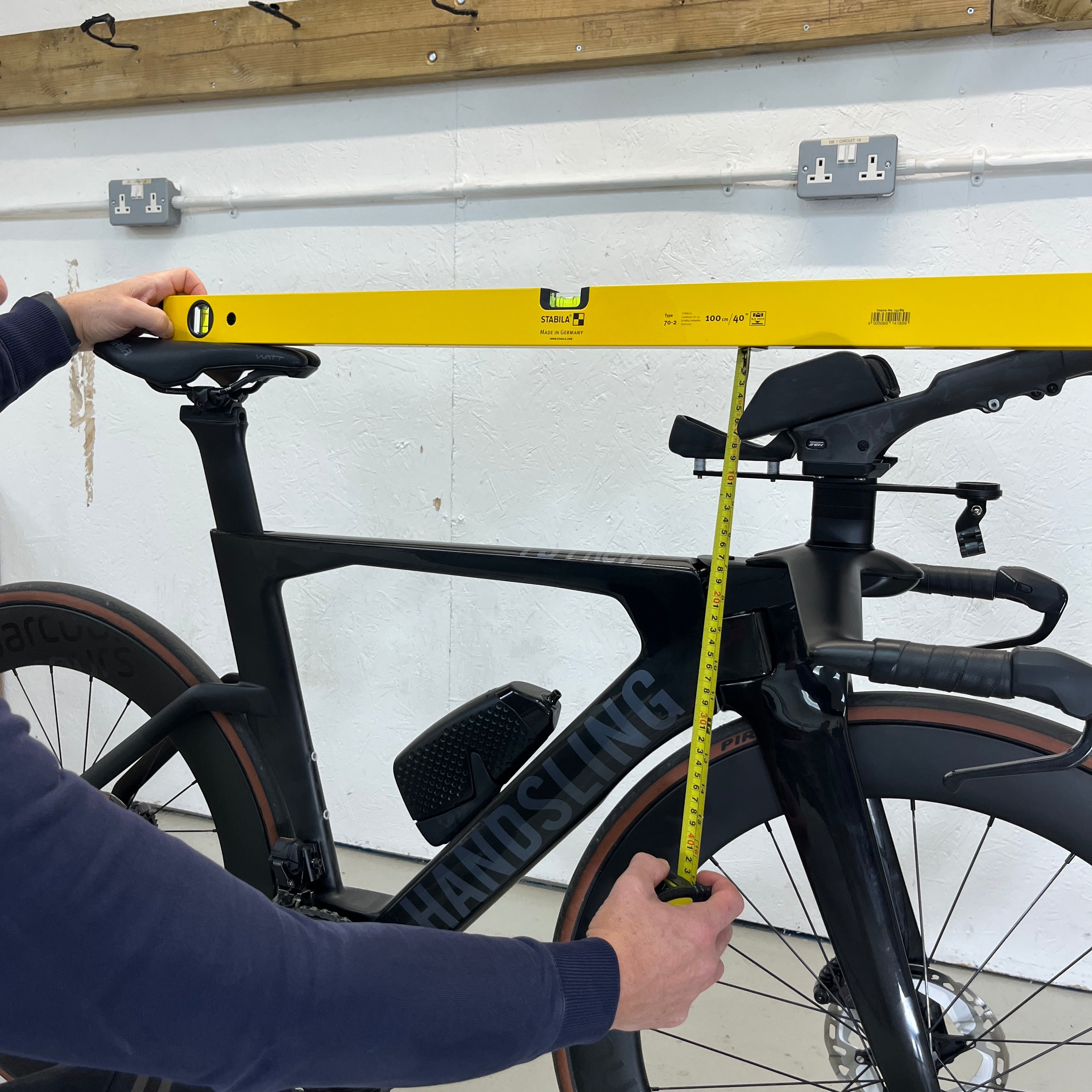

Bar Drop
Saddle to top of base bar drop.
STEP 9

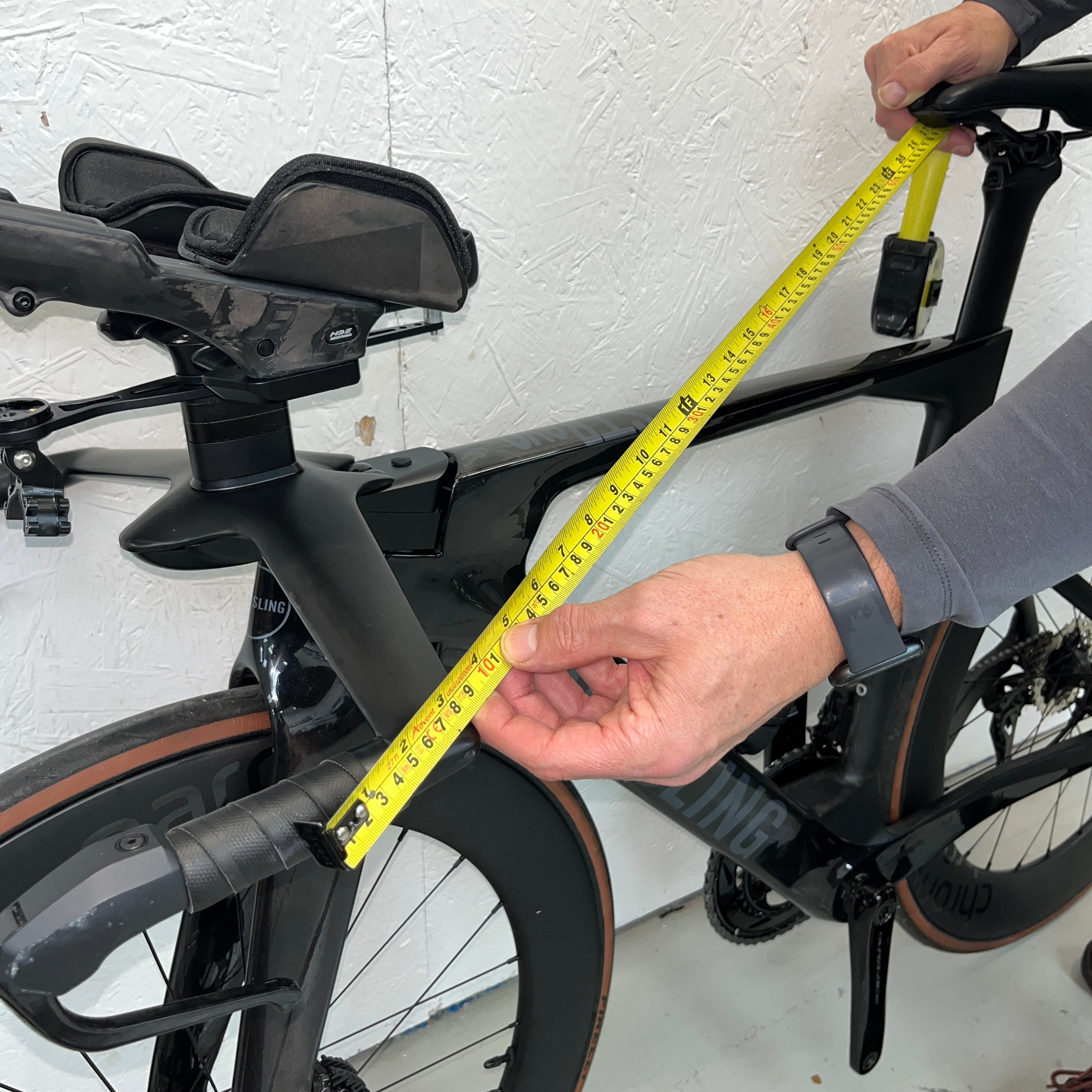

Saddle to grip
Saddle to centre of base bar grip
