Triathlon Frames

TRIATHLON FRAMES

High performance, UCI-approved, advanced carbon disc brake frames designed 100% in house

AERO. LIGHT. DURABLE.

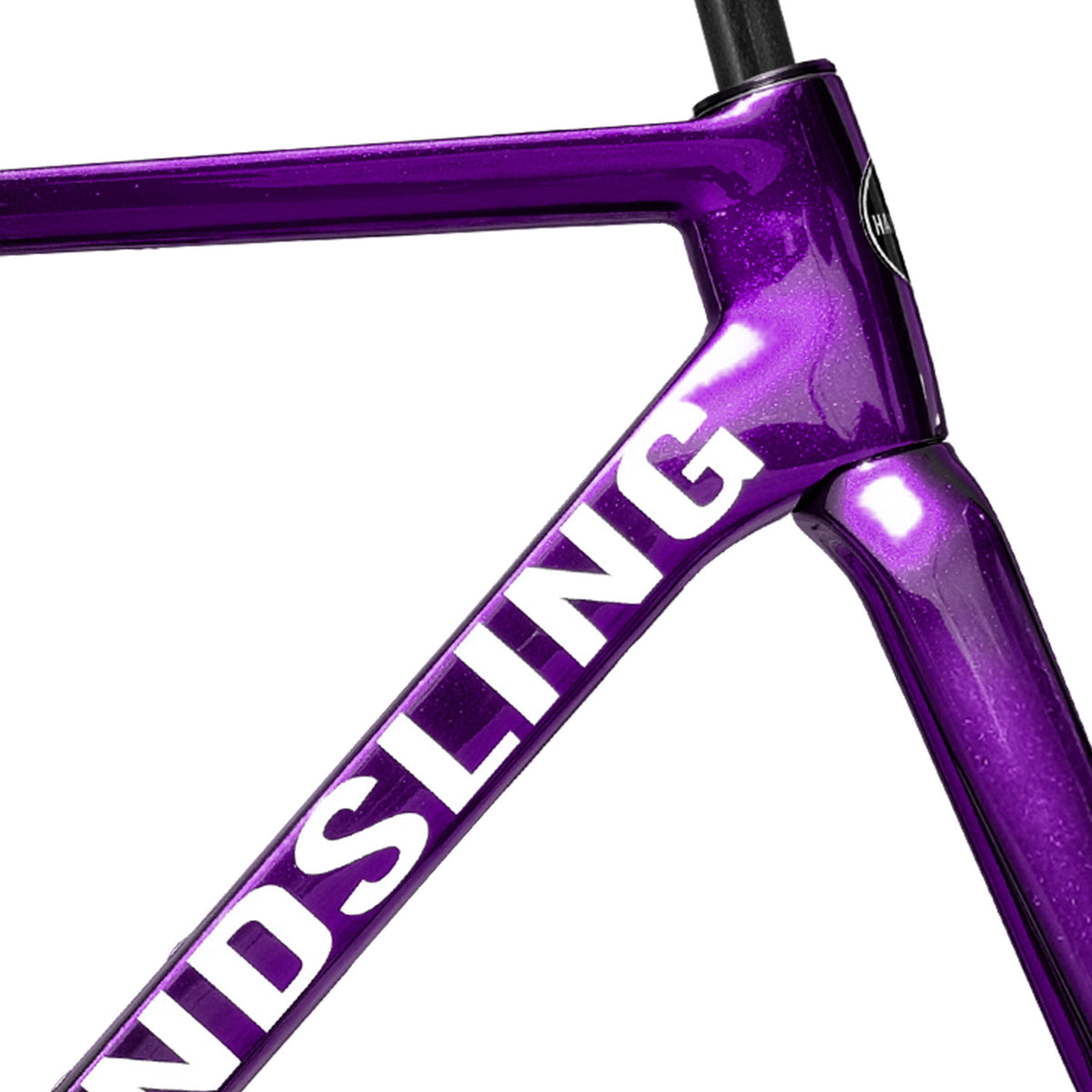

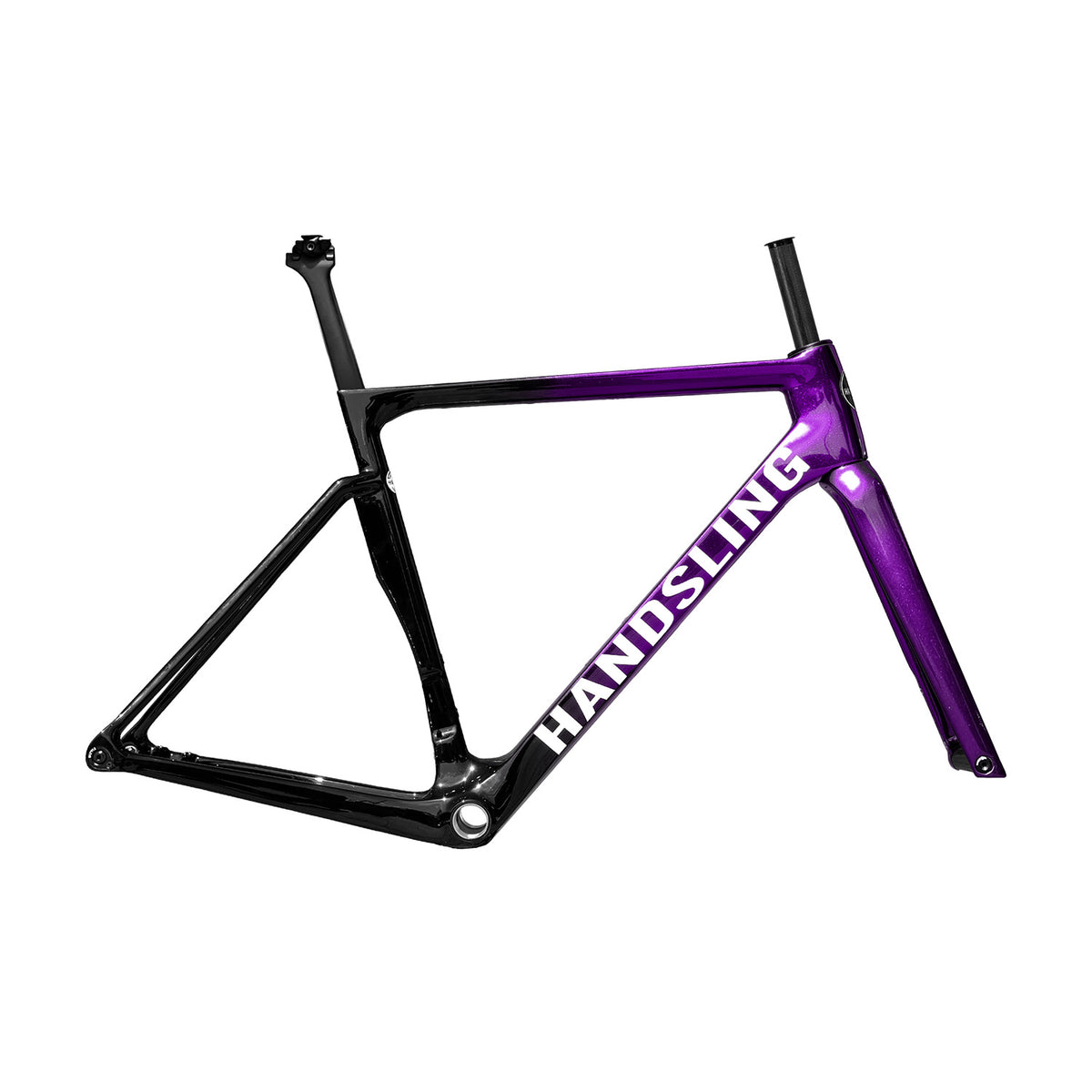

Handsling A1R0evo

The UCI-approved A1R0evo frame excels in draft legal triathlon thanks to its aero performance, punchy acceleration, assured handling and exceptional comfort. The carbon frame is raced at international level by elite athletes including Team GB bronze medalist Simon Davis.

The UCI-approved frame is available in six sizes and 15 limited edition colours.

Frameset includes:

Integrated headset bearings
Aero, interlocking headset spacers
Dedicated aero seatpost
Handsling superlight thru axles 142x12mm and 100x12mm

* Aero-integrated handlebars are sold separately

Contact us for more information: tel. 01420 612700 or email sales@handslingbikes.com

Design and Production

Designed 100% in-house and engineered by one of the best in the business.
Manufactured using Toray T800 carbon, one of the strongest, toughest carbons on the market
Frame is designed for constant use and to take knocks
Internal EPS internal moulds used for increased carbon compaction to make the frame tougher, lighter, and stiffer
Rigorous, destructive testing procedure to surpass ISO standards
Weight 920g matte UD carbon frame and 350g uncut fork (size 52cm)

Stiffness

Downtube flairs out to the full width of the BB86 bottom bracket
Hourglass head tube is massively stiff and oversized, yet still aero
Fork and chainstays are asymmetric in design to withstand twisting forces
12mm thru axles further enhance frame and wheel stiffness
Stiff yet aero hourglass headtube resists twisting forces under hard efforts
Asymmetric fork to counter twisting forces of hard-braking with disc brakes, creating a more stable ride
Asymmetric chainstays resist pedalling forces, ensuring no wasted energy by turning lateral forces into forward momentum
Oversized short chainstays result in quick yet stable handling, maximising power transfer to back wheel while placing rider over rear to aid handling and traction

Aerodynamics

Dropped seatstays reduce the frontal area of the bike, aiding aerodynamic efficiency
Frame is aero in a wide variety of conditions, no matter the wind direction
Fully-integrated hidden cable design provides a clean look and aerodynamic advantage
Truncated tubes act like an aerofoil by creating kammtail air flow behind tube, but at reduced weight due to truncation

Comfort

Frame accepts 32mm tyres, increasing comfort levels and opening up all sorts of possibilities
Larger tyres enhance comfort so frame can be built with more lateral stiffness
Unique aero seattube shape which thins to a standard diameter seatpost
Seatpost is an aero, truncated D-shape and utilises a clever, non-stick seat clamp expander bolt hidden under the top tube

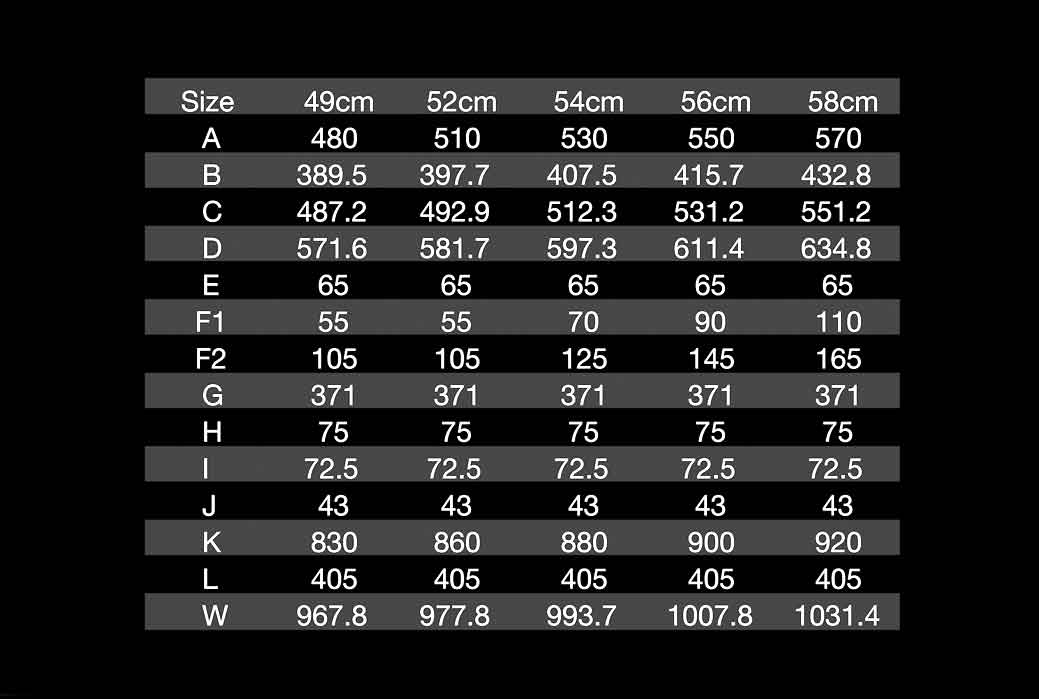

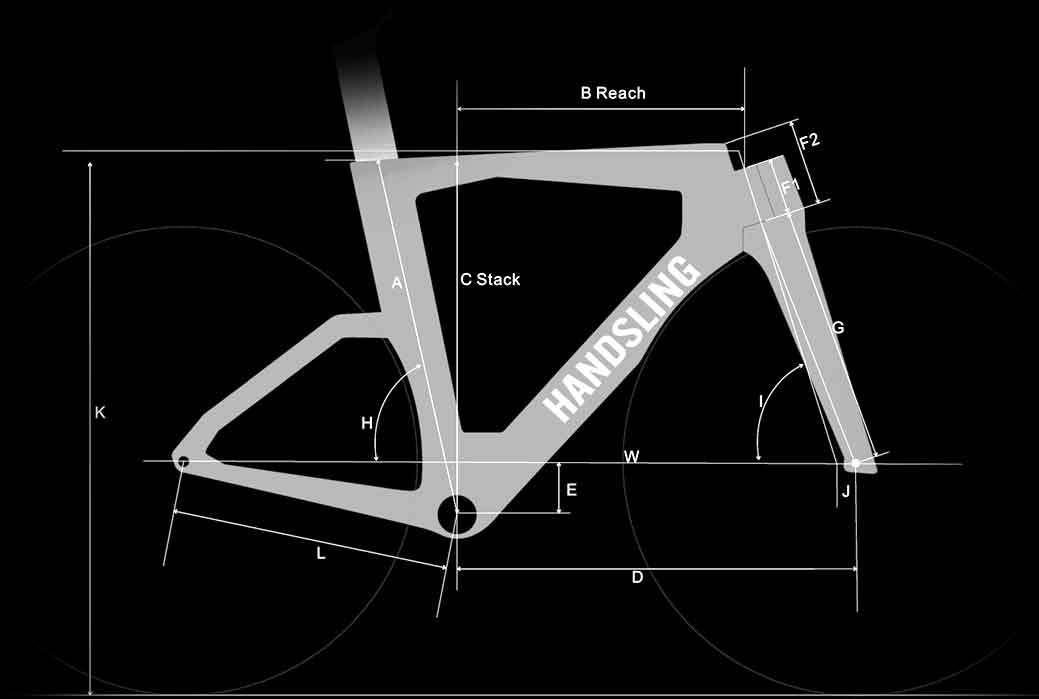

Geometry

Neutral geometry is stable on downhills, while fast-reacting and nimble through the turns.

Great quality frameset which is outstanding to ride. Speed & comfort rarely come together on a road bike but my A1R0evo has it mastered.

It's fast in racing, but also handles really well, which is important when I’m cornering in a criterium or road race.

The A1R0evo is fast, it climbs, it's stable, it handles brilliantly, inspires confidence at speed and is comfortable.

The bike is super smooth, but also has really sharp handling and just feels fast.

Stiff, nimble and really quick, yet more than comfortable…..that frame is seriously top!

I was free wheeling when others where pedalling lol it just cut through the air! Roll on next event!

The bike - A1RO Evo Ultegra Di2 is a dream! It's fast without being twitchy, comfortable on long rides and climbs brilliantly too. Puts a smile on my face every time I ride it!

Stiff, nimble and really quick, yet more than comfortable…..that frame is seriously top! All the set up was spot on; using 28’s tyres perfect for the gnarly Yorkshire tarmac,
