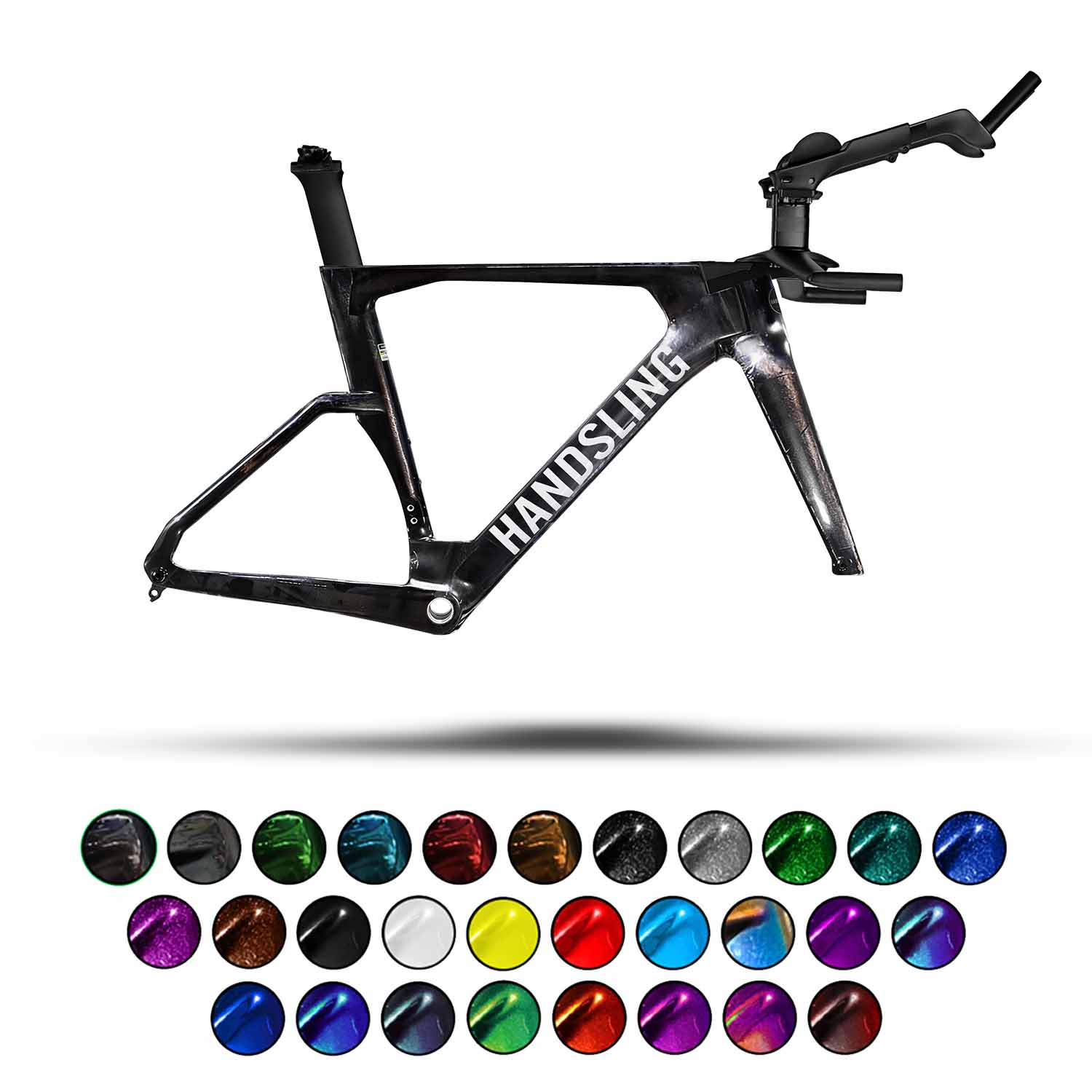

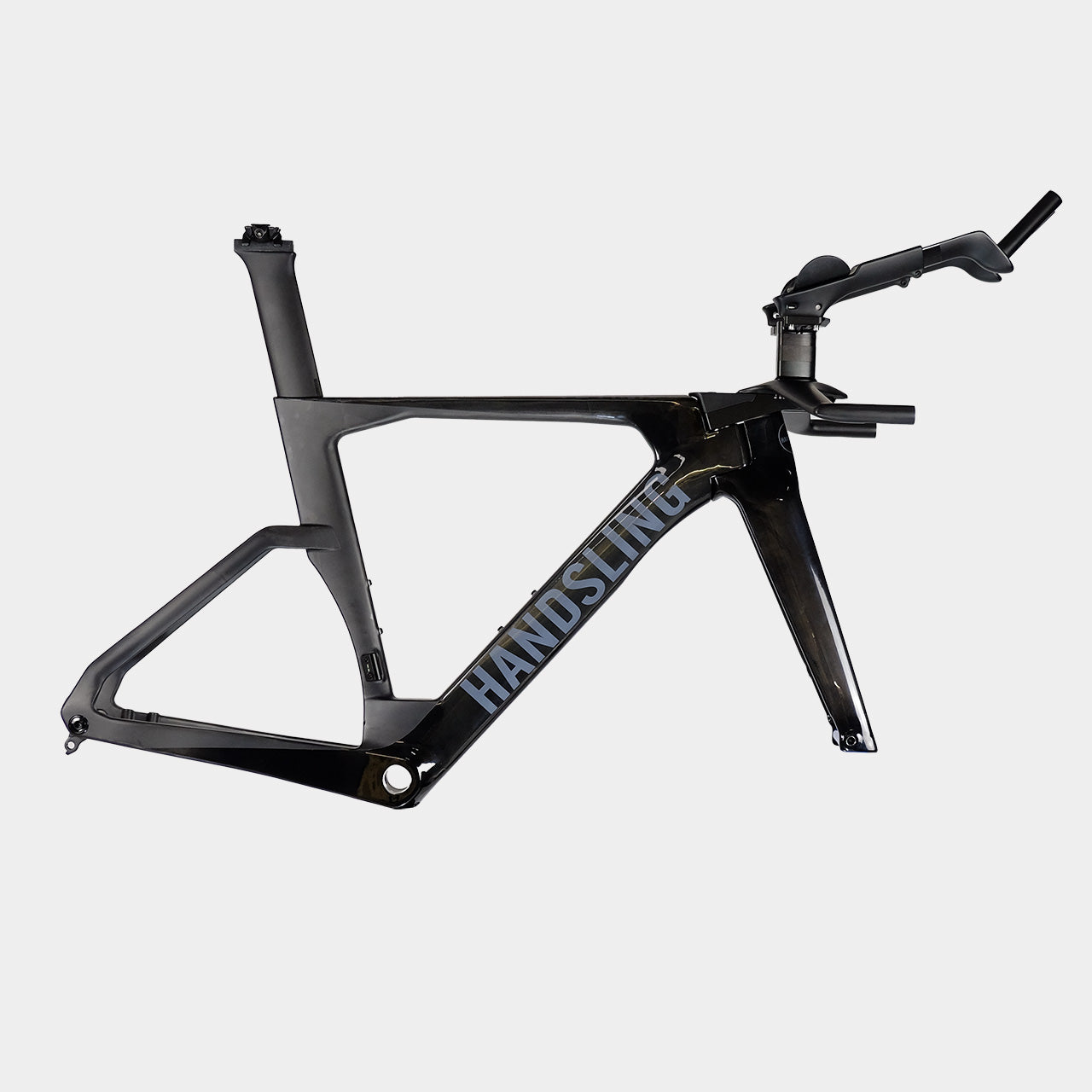

Handsling TSTRevo Carbon TT/Triathlon Frame
Reviews (350+)★★★★★
Beat the clock with the Handsling TSTRevo. Crafted from Toray T800 carbon, this UCI-approved time trial frame combines advanced aerodynamics, exceptional stiffness and a highly adjustable carbon cockpit to optimise your racing position. With disc brakes and clearance for 32mm tyres, it delivers speed and control for time trials and non-drafting triathlons.
The UCI-approved Handsling TSTRevo (pronounced "tester-evo") delivers cutting edge aerodynamics to excel against the clock in the race of truth
The TSTRevo has won gold at the 2024 Paralympics in Paris, national titles, regional time trials and triathlon bike legs
The TSTRevo is the definition of modern TT frame design delivering race-winning performance via:
- Aero tube profiles that are fast in the real world and in all conditions leading to higher top speeds
- BSA bottom bracket was the most aerodynamic option in testing, allowing the use of a narrower, smaller section bottom bracket shell

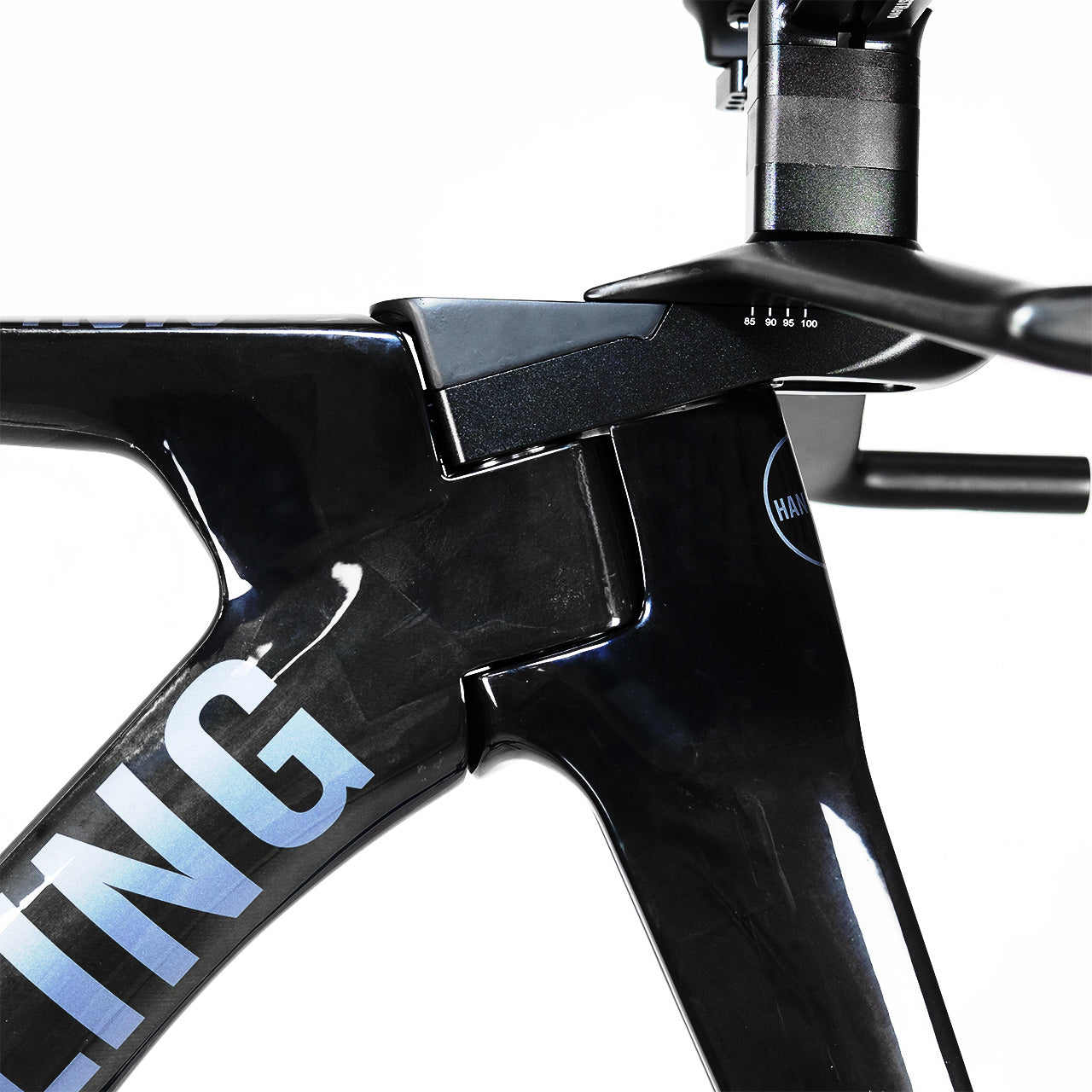

- A short head tube enables riders to achieve a low, aggressive position, reducing frontal area to help slice through the air with maximum efficiency
- Disc brakes enabling you to stop in all conditions
- Clearance for 32mm tyres to provide enhanced comfort levels, while taking advantage of the lower rolling resistance and the exceptional cornering grip of wider tyres

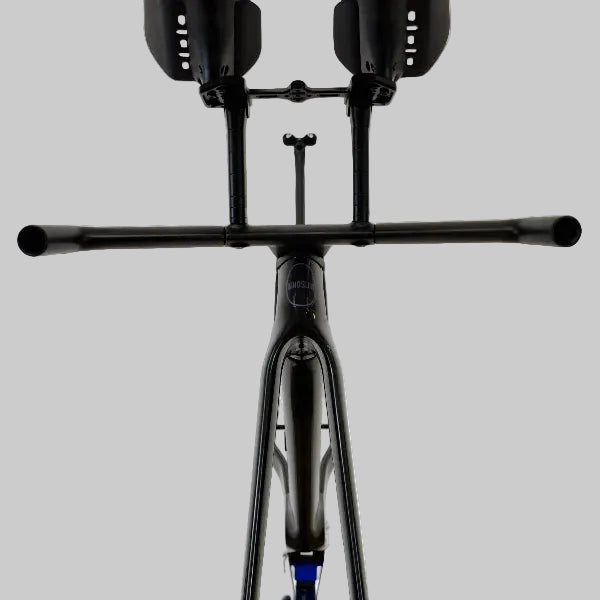

- Bespoke carbon base bar, forearm cups, and aero, D-shaped extensions
- Highly adjustable cockpit that allows the rider to achieve their optimum position

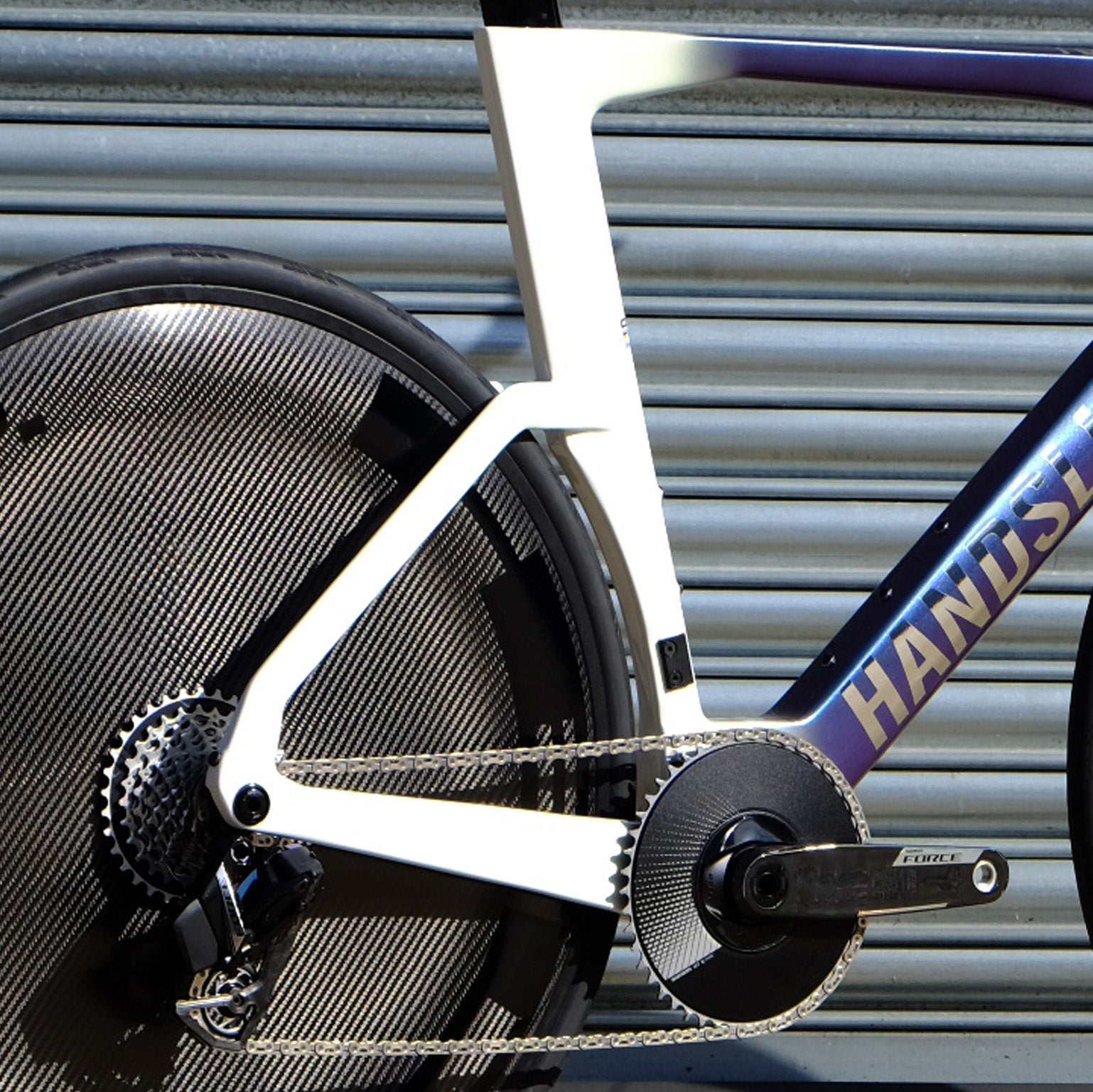

- A steep seat tube that places the rider further over the bottom bracket for maximum pedalling efficiency

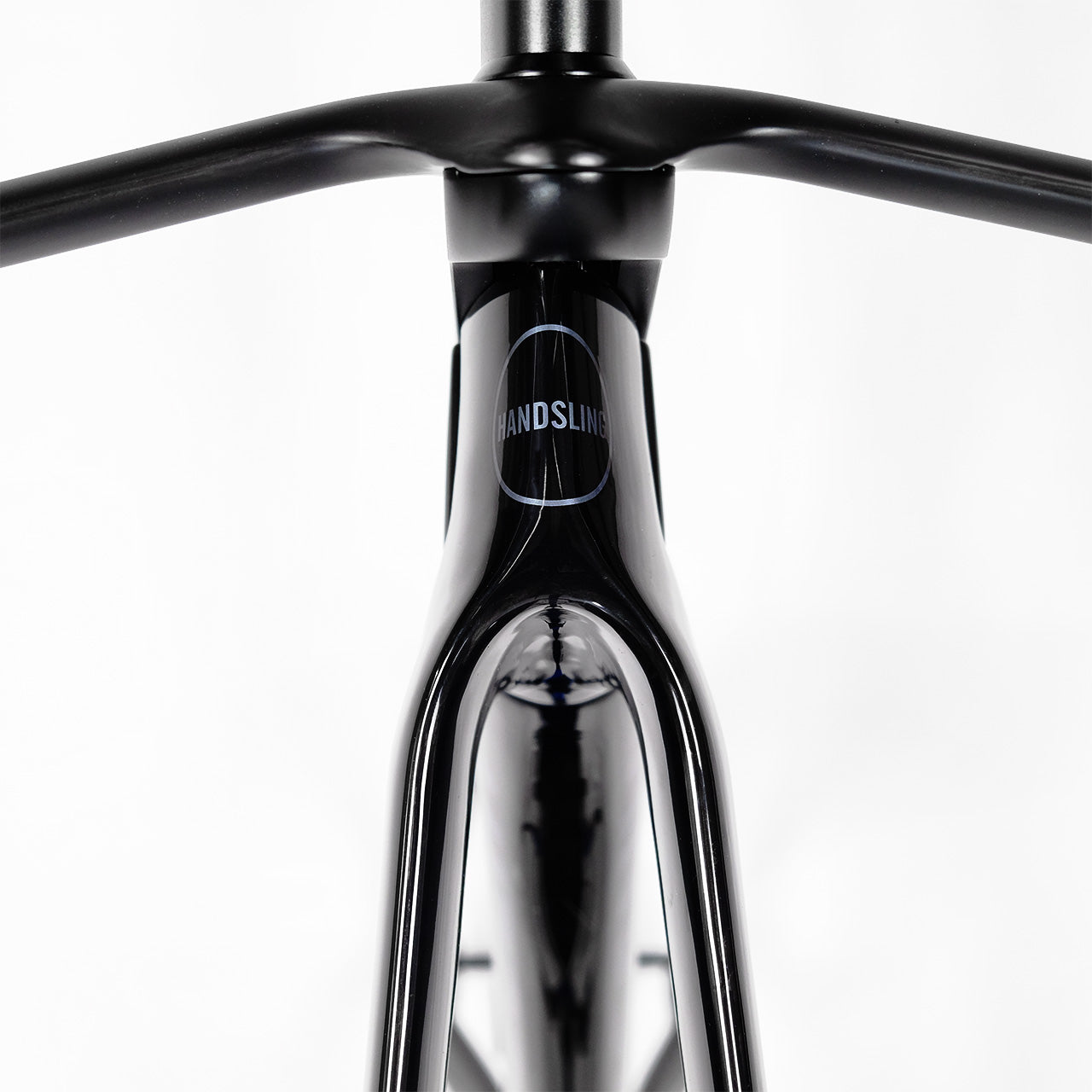

- Massively stiff headtube, chain stays and BSA bottom bracket shell ensure maximum power transfer
Features:
- Designed 100% in-house and engineered by one of the best in the business
- Engineered using light and stiff Toray T800 carbon
- UCI-approved
- Bladder wrapped, internal EPS moulds used for increased carbon compaction
- Rigorous, destructive testing procedure to surpass ISO standards

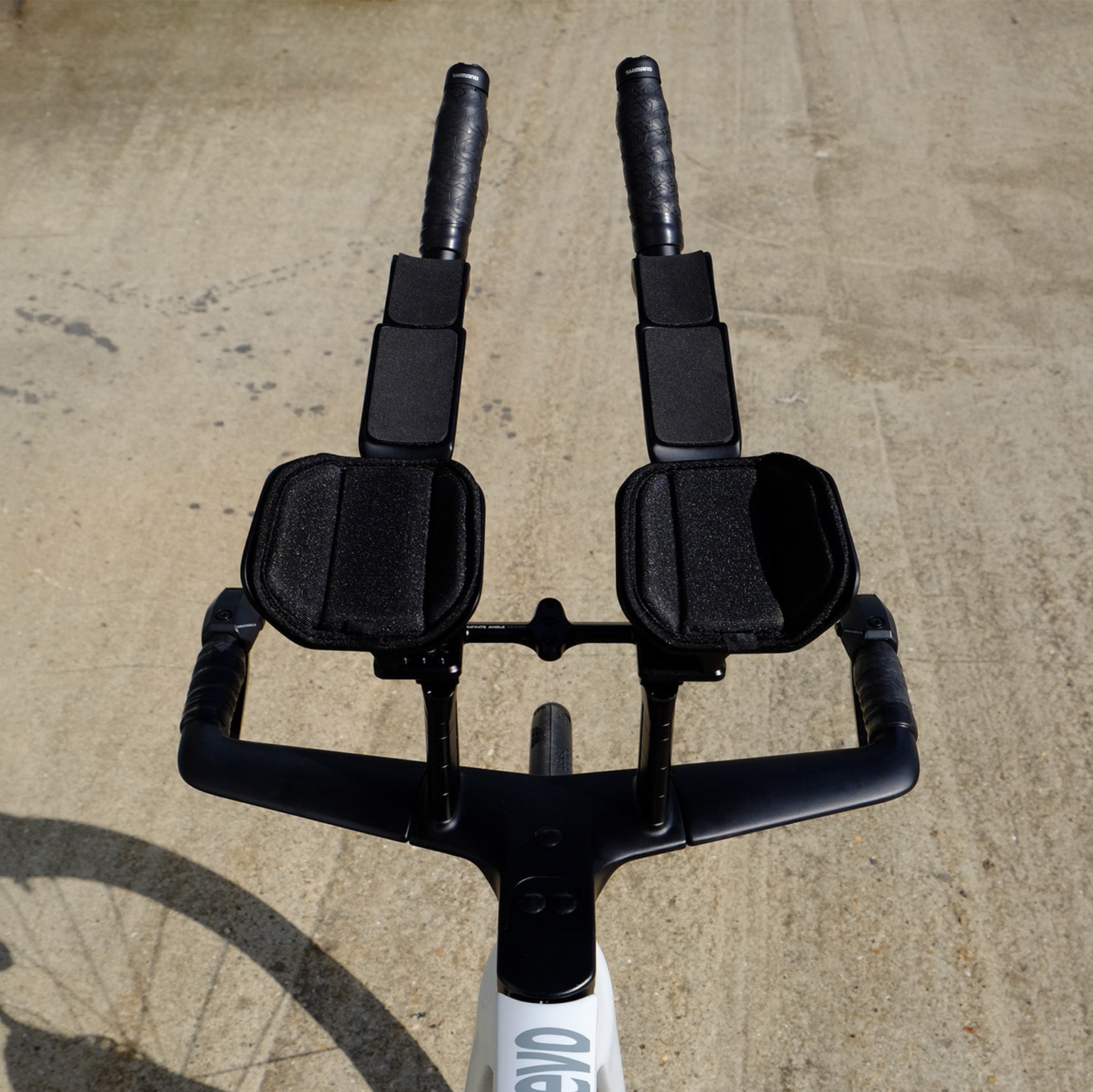

- Cockpit features 40cm wide base bar (centre to centre), a wide range of spacers to adjust stack height and reach adjustable tri bar

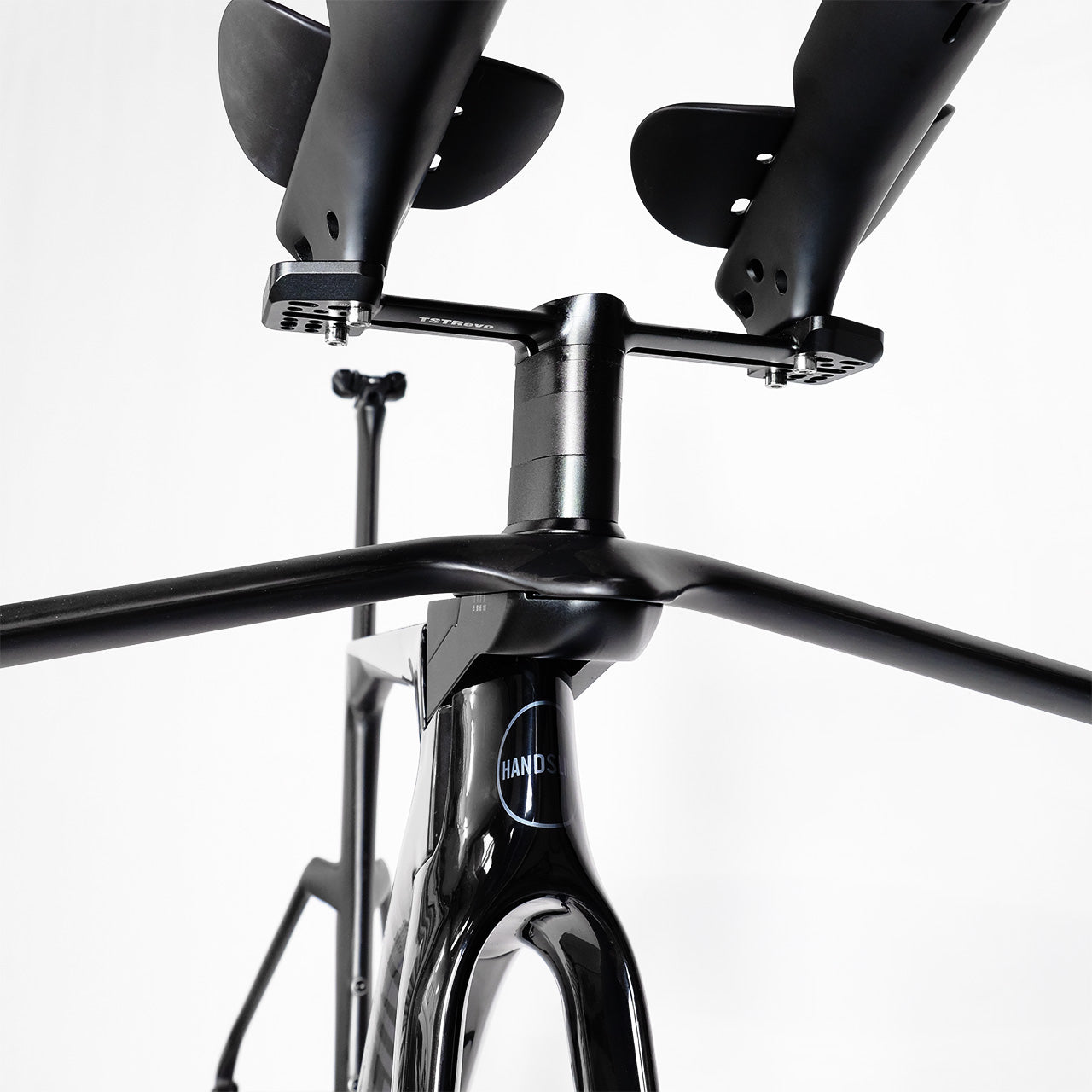

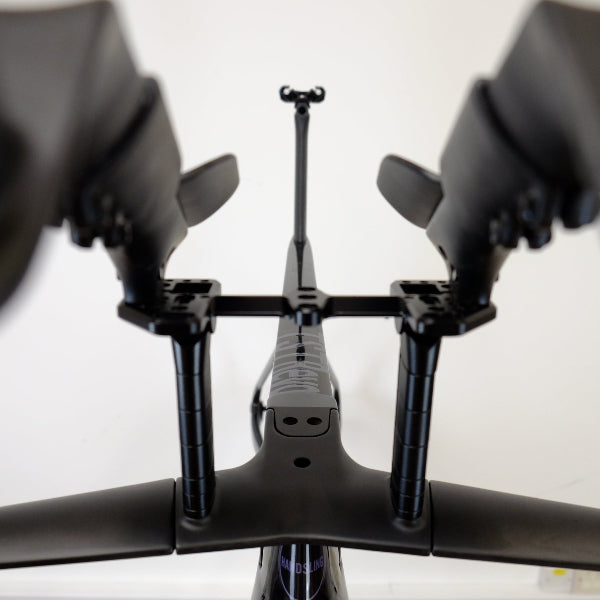

Cockpit Adjustability:

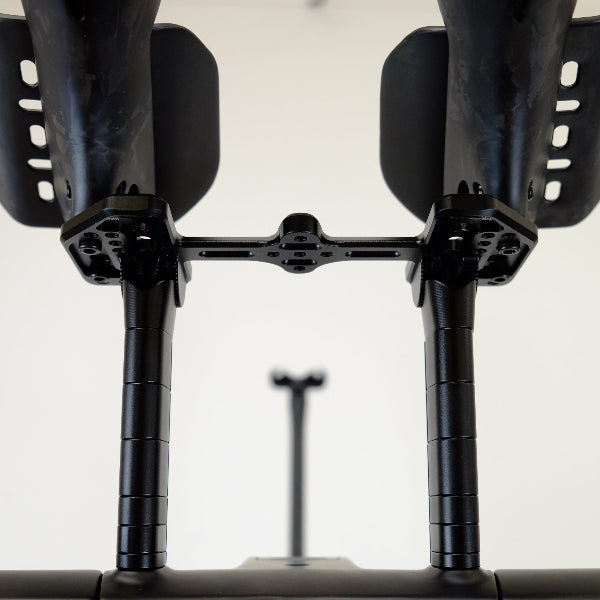

- Spacer stack: Minimum spacer stack 1cm above base bar. Maximum spacer stack 8.5cm above base bar.

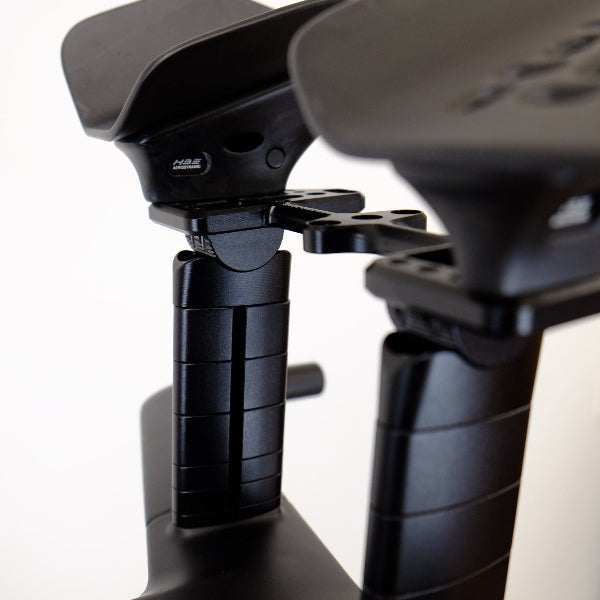

- Cups: 3cm of fore/aft movement, 4cm of lateral (side-to-side) movement
- Extensions: 7cm of fore/aft movement (shortest reach may require extensions to be cut).
- Extension poles: 2cm side to side on base plate
All this combines to make the TSTRevo the ultimate carbon fibre frame for time trial and non-drafting triathlons
Frameset includes:
- Integrated 1/8th" to 1.5 headset bearings
- Dedicated aero seatpost and clamp
- Integrated cockpit with spacers and pads
- Handsling superlight thru axles 142x12mm and 100x12mm
- Aero seatpost with clamp for standard saddle rails. Please request clamp for carbon oval saddle rails if required
All Handsling frames have a limited lifetime warranty
Your custom-built frame will be delivered in approximately 6 weeks*, depending on your chosen options.
• You’ll receive regular updates throughout the build process.
• UK: VAT included. Ships via DPD, FedEx or DHL with tracking.
• International: Shipped DAP – taxes and duties not included. Shipping calculated at checkout.
• Tracking info will be provided once dispatched.
*Lead times may vary based on specification.
Don't settle for a one-size-fits-all bike. Handsling offers a tailored bike fitting service to our customers, ensuring we find the right fit of frame, spacers, stem and bars.
Tel. 01420 612700 or email sales@handslingbikes.com
%20delivers%20cutting%20edge%20aerodynamics%20to%20excel%20against%20the%20clock%20in%20the%20race%20of%20truth%0AThe%20TSTRevo%20has%20won%20gold%20at%20the%202024%20Paralympics%20in%20P...
){kind=link}
TSTRevo Features
The UCI-approved Handsling TSTRevo (pronounced "tester-evo") represents the cutting edge of modern time trial and triathlon engineering. Proven across national titles, regional time trials, and dominant triathlon bike legs, it is meticulously designed 100% in-house to slash drag, maximize power transfer, and dominate the race of truth.
Precision Frame Engineering
Manufactured using bladder-wrapped internal EPS moulds for superior material compaction, the frame maximizes structural integrity and delivers absolute tracking stiffness.
Bespoke & Highly Adjustable Cockpit
Includes a proprietary carbon base bar, forearm cups, and D-shaped extensions with extensive stack, reach, and lateral adjustments for a completely optimised aerodynamic fit.
Real-World Aerodynamic Tubing
Truncated aerofoil tube shapes and a short head tube dramatically minimize frontal surface area, allowing the frame to slice through the wind with maximum efficiency.
High-Performance BSA Bottom Bracket
Proven in testing as the most aerodynamic option, the stiff, narrow-section BSA shell ensures absolute power transfer through the rear stays without wasting a single watt.
Aggressive Race-Fit Geometry
A steep seat tube positions the rider directly over the bottom bracket for maximum pedaling leverage, while the ultra-stiff front end ensures stable tracking at high speeds.
Disc Brakes & 32mm Tyre Clearance
Powerful disc brakes provide elite all-weather stopping control, paired with generous 32mm tyre clearance for reduced rolling resistance and exceptional cornering grip.
Sizing Guide
Finding the right size bike can be a bit overwhelming, but don't worry - we're here to help. The right size bike will ensure a comfortable and safe ride, so it's important to take some time to find the perfect fit.
Tailored Bike Fitting
Dimensions
Carbon frames are manufactured in the Far East using moulds that are owned by Handsling. This provides full control over the production process and makes each and every model exclusive to the brand.
Learn moreCustomer Reviews
Check out more reviews of the Handsling TSTRevo on Trustpilot or Facebook.
Book a test ride?
We have a range of test bikes available. Book a test ride today at our UK workshop, or schedule a video call with our sales team.
