Groupsets and Finishing Kit

Stiff, integrated bar and stem for those who want maximum performance.

The race bar works with either a 1 1/8th or a 1 1/4 steerer tube, and with normal or oversize, hidden cable headtubes.

Steerer clamp diameter is 31.8mm without the shim or  28.6mm with the shim.

Stem length 9cm, 10cm, 11cm or 12cm

Bar width 38cm, 40cm, 42cm or 44cm

Weight is approx 350g for a 10cm x 42cm bar

Integrated bar and stem with some built in flex for those who want a more comfortable ride.

Compact design with drop of 125mm and reach of 80mm

Bar end Di2 compatible

The steerer clamp is a wedge style unit

Stem size is 9cm, 10cm, 11cm, 12cm and bar size is 38cm, 40cm, 42cm, and 44cm

Weight is approx 330g including the wedge

Available in matte or gloss finish

Our new super stiff carbon AERO carbon handlebar can be used with hidden, internally routed cabling or with any normal stem that clamps 31.8 diameter bars.

This bar is incredibly stiff. It affords more adjustability than Handsling integrated bars.

The Aero handlebar has a flattened top section which is more aero and affords a comfortable hand hold when on the tops.

Available widths are 38cm (coming soon), 40cm, 42cm and 44cm centre to centre.

Drop is 12.5cm.

Average weight is 230g.

Our new super stiff, oversized carbon SPRINT stem is designed to be used with hidden cable, oversize headtubes, with internally cabled bars.

The Sprint stem is -12 degrees and affords a low frontal position.

This bar and stem is an incredibly stiff set-up and affords plenty of adjustability.

Lengths are 90mm, 100mm, 110mm and 120mm.

It weighs just 130g in size 110mm.

Works with any 31.8mm bar.

Our new super stiff, oversized carbon SPRINT stem is designed to be used with normal headtubes, with externally routed cables.

The Sprint stem is -12 degrees and affords a low frontal position.

This bar and stem is an incredibly stiff set-up and affords plenty of adjustability.

Lengths are 90mm, 100mm, 110mm and 120mm.

It weighs just 130g in size 110mm.

Works with any 31.8mm bar.

Our new super stiff carbon AERO bar and oversized SPRINT stem designed to be used with hidden, internally routed cabling.

Includes headset spacers drilled for cables for use with 1.5" headset races. 5mm, 10mm and 20mm available.

This bar and stem is an incredibly stiff set-up but affords more adjustability than our integrated bars.

The Sprint stem is -12 degrees and affords a low frontal position. Lengths are 90mm, 100mm, 110mm and 120mm. It weighs just 130g in size 110mm.

The Aero handlebar has a flattened top section which is more aero and affords a comfortable hand hold when on the tops. Available widths are 38cm (coming soon), 40cm, 42cm and 44cm centre top centre. Average weight is 230g. Drop is 12.5cm.

Lay back seatpost with a rearward off-set of 2cm, designed to reduce the seattube angle and get the rider further over the rear wheel.

This is the seatpost we use on the CEXevo in most situations.

It is 40cm long and is a 27.2 post.

Available in matte or gloss.

A 31.6 version is available to order - contact us.

Zero Off-set seatpost designed to bring the rider further forward. We use this on the CEXevo for riders who require a reduced reach.

It is 40cm long and is a 27.2 post.

Available in matte or gloss.

A 31.6 version is available to order - contact us.

Aero track seatpost that fits the TR3evo and TR2evo, plus the original TR1 and TR3 frames.

Available in gloss and matte finishes.

Handsling Superlight Rib Cage Carbon Bottle Cages are the ideal addition to any bikes.

These very lightweight carbon bottle cages offer a secure grip yet add very little weight to your dream machine.

Available in matte or gloss finish.

Approx weight 17g

Carbon computer mount for use with Handsling integrated bars.

Kit contains carbon mount, 3 computer clamps, 2 bolts for mounting to the bars, camera mount, and light adaptor with rubber band.

BB30 Kit

Specifications:

1) Compatible with BB30 standard frames and cranksets

2) Includes:

2x ceramic 6806 bearings

2 dust shields, 2x circlips

1x wave spacer

3) Net weight approx 54 gram

BB30 Adapter with Bearings

Specifications:

1) Allows the use of Shimano Hollow Tech II cranksets on BB30 frames

2) CNC machined alloy cups with anodised in BLACK

3) With HSC hybrid or full ceramic bearings

4) Net weight approx 90 gram (hybrid version)

BB86 Press Fit Bottom Brackets

High performance, reliable, smooth running bottom brackets from HSCER.

As fitted to all Handsling frames, and as used by the Handsling Racing Team in road, cyclocross, gravel, and track bikes.

We have had some BB86 units last for 5 seasons.

PF-BB86

Specifications:

For fitting press fit (non-threaded) bottom bracket shells with shell width of 86.5mm, and shell internal diameter of 41mm

Compatible with various Shimano, SRAM/Truvativ/ Bontrager, and now 30mm and DUB road cranksets

Use HSC hybrid ceramic bearings and special hardened races that are extremely resistant to wear

Net weight of 65 grams

Options:

BB86-24.24R (for Shimano HT II Road)

BB86-24.22R (for SRAM GXP Road)

BB86-CP-UT (for Campagnolo Ultra Torque)

BB86-CP-PT (for Campagnolo Power Torque)

BB86-386/30R (for 86.5mm width, 41mm ID shell but to accommodate a 30mm axle)

BB86-DUB (for SRAM DUB chainset)

PF-BB41 (89.5/92 width)

Specifications:

For fitting press fit (non-threaded) frame shells with shell width of 92mm or 89.5mm, and shell ID = 41mm

Compatible with Shimano or SRAM/Truvativ/ Bontrager MTB cranksets

Use HSC hybrid ceramic bearings and specially hardened races

Net weight of 67 gram

Options:

BB92-24.24M (for Shimano HT II MTB)

BB92-24.22M (for SRAM GXP MTB)

Read a review of the HSCER BB86 press fit bottom bracket

BBRight Press-Fit Bottom Brackets

High performance, reliable, smooth running bottom brackets.

As fitted to all Handsling bikes and used by the Handsling Racing Team in road, cyclocross, gravel, and track bikes.

We have had some units last for 5 seasons.

BBRight for Cervelo frames

Options:

BBRight-24.24R (BBRight shell for Shimano HT II Road)

BBRight-24.22R (BBRight shell for SRAM GXP Road)

BBRight-CP-UT (BBRight shell for Campagnolo Ultra Torque)

BBRight-CP-PT (BBRight shell for Campagnolo Power Torque)

Press-Fit Bottom Brackets

High performance, reliable, smooth running ceramic bottom brackets from HSCER.

As fitted to all Handsling bikes and as used by the Handsling Racing Team in road, cyclocross, gravel, and track bikes.

We have had some units last for 5 seasons.

PF30 / BB386EVO / ROTOR 3D 30mm

Specifications:

For fitting press fit (non-threaded) bottom bracket shells

Press-fit 30 shells with shell width of 68mm, 73mm, or 86.5mm, and shell internal diameter of 46mm

Compatible with various spindle sizes (axle) cranksets - 30mm, 24mm Shimano, 24mm SRAM, etc.

Bracket uses HSC hybrid ceramic bearings on special hardened races

Net weight ≈ 79 gram

Options:

PF30-386 (PF30 / OSBB shell for BB30 / BB386EVO)

PF30-24.24R (PF30 Adapter for Shimano HT II Road)

PF30-24.22R (PF30 Adapter for SRAM GXP Road)

PF30-24.24M (PF30 Adapter for Shimano HT II MTB)

PF30-24.22M (PF30 Adapter for SRAM GXP MTB)

PF30-PT-UT (PF30 Adapter for Campagnolo Ultra Torque)

PF30-PT-PT (PF30 Adapter for Campagnolo Power Torque)

BB386-24.24R (BB386EVO shell for Shimano HT II Road)

BB386-24.22R (BB386EVO shell for SRAM GXP Road)

BB386-CP-UT (BB386EVO shell for Campagnolo Ultra Torque)

BB386-CP-PT (BB386EVO shell for Campagnolo Power Torque)

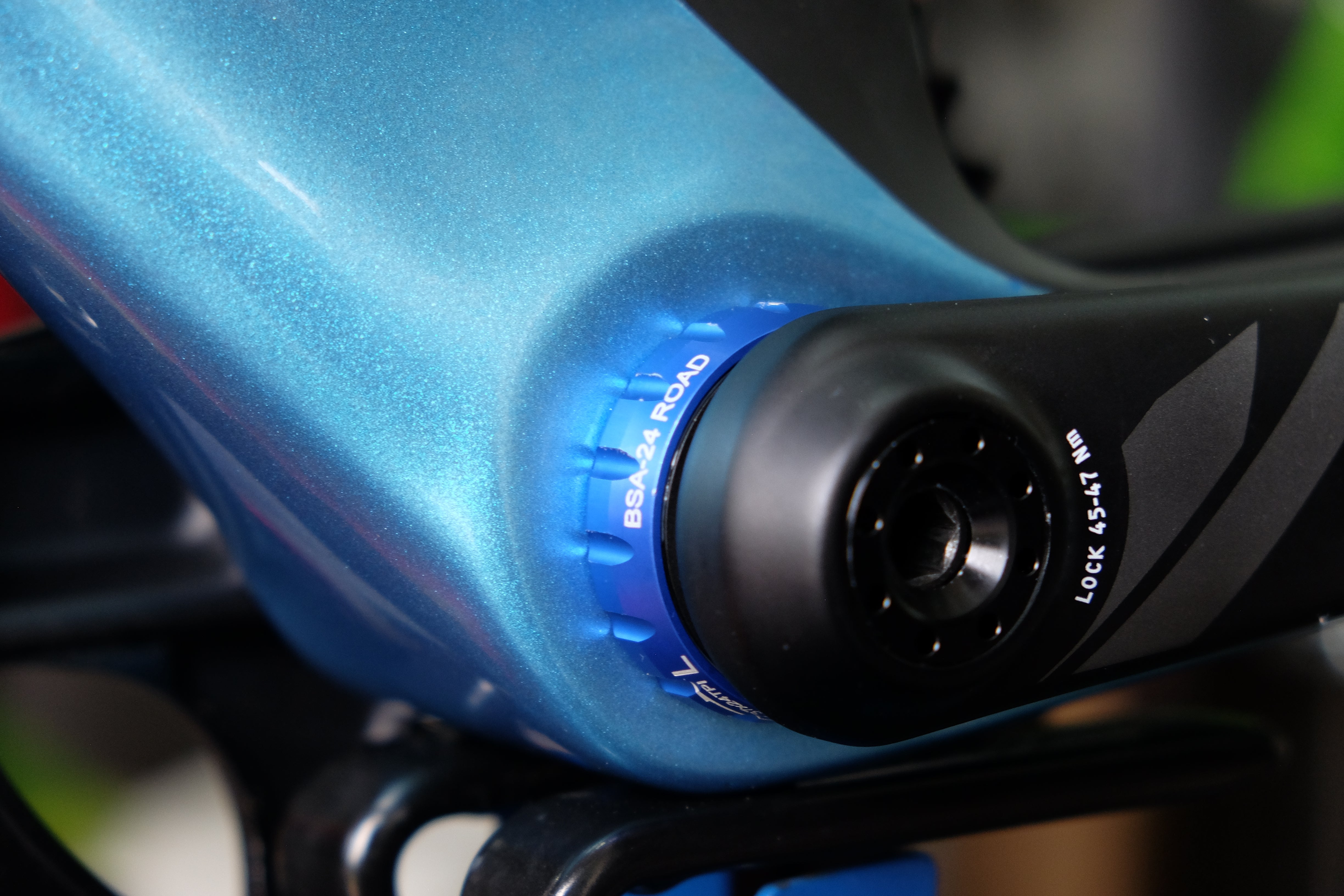

BSA Ceramic bottom brackets by HSC Ceramics (HSCER).

High performance, reliable, smooth running bottom brackets. As used by the Handsling Racing Team in road, cyclocross, gravel, and track bikes. We have had some units last for 5 seasons.

Specifications:

1) Forged and CNC machined alloy cups with anodised in BLACK, SILVER, RED, GOLD, BLUE, GREEN

2) With hybrid ceramic bearings and special hardened races

3) Compatible with Shimano, SRAM/Truvativ/Bontrager cranksets, FSA and Campagnolo cranksets

4) English (BSA) threads 1.37" x 24TPI

5) Light weight design at approx 87 gram (hybrid version)

6) ROAD and MTB versions

Options:

BSA-24.24R (Threaded BSA for Shimano HT II Road)

BSA-24.22R (Threaded BSA for SRAM GXP Road)

BSA-CP-UT (Threaded BSA for Campagnolo Ultra Torque)

BSA-CP-PT (Threaded BSA for Campagnolo Power Torque)

BSA-24.24M (Threaded BSA for Shimano HT II MTB)

BSA-24.22M (Threaded BSA for SRAM GXP MTB)

ITA-24.24R (Threaded ITA for Shimano HT II Road)

ITA-24.22R (Threaded ITA for SRAM GXP Road)

BSA30-386 (Threaded BSA for Rotor 3D+/3DF, BB386EVO etc.)

BSA DUB (Threaded BSA for SRAM DUB chainset)

Note: If the particular unit or colour you want is sold out we can order it in specifically for you. Usually takes 1-2 weeks.

Read a review of the HSCER BSA DUB bottom bracket

Italian Threaded Ceramic bottom brackets by HSC Ceramics (HSCER).

High performance, reliable, smooth running bottom brackets. As used by the Handsling Racing Team in road, cyclocross, gravel, and track bikes. We have had some units last for 5 seasons.

Specifications:

1) Forged and CNC machined alloy cups with anodised in BLACK, SILVER, RED, GOLD, BLUE, GREEN

2) With hybrid ceramic bearings and special hardened races

3) Compatible with Shimano, SRAM/Truvativ/Bontrager cranksets, FSA and Campagnolo cranksets

4) Italian threads 36mm x 24TPI

5) Light weight design at approx 87 gram

Options:

ITA-24.24R - Threaded Italian bottom bracket - to fit Shimano HT II Road cranks

ITA-24.22R - Threaded Italian bottom bracket - to fit SRAM GXP Road cranks

ITA-CP-PT - Threaded Italian bottom bracket - to fit Campagnolo Powertorque crankset

ITA-CP-UT - Threaded Italian bottom bracket - to fit Campagnolo Ultratorque crankset

Note: If the particular unit or colour you want is sold out we can order it in specifically for you. Usually takes 1-2 weeks.

High quality 1 1/8th to 1.5 " headset to fit Handsling track and cyclocross/gravel frames.

• ACB sealed bearing: NHB-6B (7H * OD41.8 * 45° * 45°) & NHB-15 (8H * OD52 * 45° * 45°)
• 104g
• 6061/T6 CNC Machined Top Cover & 7075/T6 CNC Machined Crown Race
• Plain, unbranded

High quality 1.5" to 1.5" headset to fit Handsling A1R0evo and other hidden cable frames.

ACB SEALED BEARING NHB-15 (OD52x45°x45°)
52mm external
40mm internal
7mm deep

6061/T6 CNC Machined Top Cover
7075/T6 CNC Machined Crown Race

Superlight and aero thru axles operated via an Allen key (not included).

Weights:

Front 100x12mm is 23g

Rear 142x12mm is 28g
